191755 & DILMS9-R23(230V50HZ,240V60HZ), Moeller DILMS Safety Contactor - 9 A, 230 V ac @ 50 Hz, 240 V ac @ 60 Hz Coil, 3NO, Реле

1875341
Номер производителя: 191755 & DILMS9-R23(230V50HZ,240V60HZ)Производитель: Moeller
Цена за шт.
27066.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

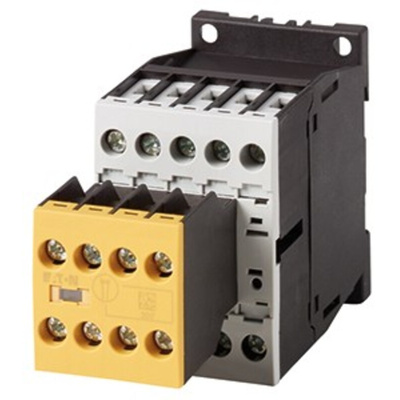

All versions of the DILMS safety contactor are equipped with a top-mounted auxiliary contact that is non-detachable. The integrated mirror contacts and interlocked opposing contacts make this contactor even safer. The contactor’s yellow cover allows for quick and easy identification. The built-in inspection window directly above the switch-position indicator makes it possible to monitor the operating status at any point in time. This reliably prevents the contactor from being activated manually. The DILMS range of contactors comprises four different sizes and covers the power range between 7 and 150 A.

Safe status monitoring of the contactor (inspection window) manual activation is not possible
Eligible to be used for Emergency-stop application with controlled start (category 4)
Reliable and self-monitoring machine-control circuits
Interlocking opposing contacts
Mirror contacts
Highlighted in yellow (RAL1004)
Reliable screw terminals
Top-mounted and non-detachable auxiliary contact (at the front)

Техническая спецификация
pdfDatasheet 191755
Глубина:
68мм
Длина:
45мм
Катушка напряжение:
230 В перем. тока при 50 Гц, 240 В перем. тока при 60 Гц
Количество вспомогательных контактов:
5
Номинальное напряжение контакта:
400 В
Номинальный ток контакта:
9 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-25°C
Серия:
DILMS
Тип клеммы:
Винт
Функция:
Safety
Ширина:
117мм
