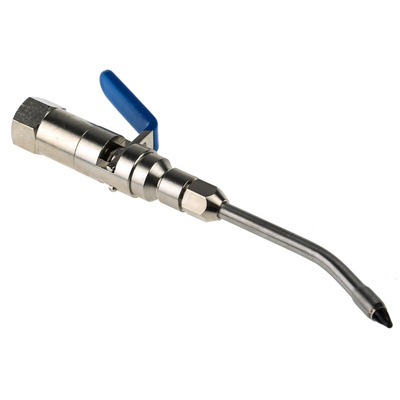

RS PRO 12bar Air Blow Gun, 1/4in Air Inlet (BSP)

RS PRO Blow Gun with Stainless Steel Safety Nozzle

Introducing the RS PRO blow gun, a high quality and compact manually controlled air compressor gun that is ideal for the removal of debris, non-contact drying and cleaning and other general industrial or laboratory applications. This pneumatic blow gun has been designed with a nickel-plated brass body, offering improved corrosion resistance, especially when working in industrial and manufacturing environments, and the stainless-steel nozzle is hard-wearing and safe to use in sensitive environments like food manufacturing or pharmaceutical production. A versatile blow gun that can connected to an air compressor hose and be used across a wide range of applications and consistently performs to a professional standard.

Features and Benefits:

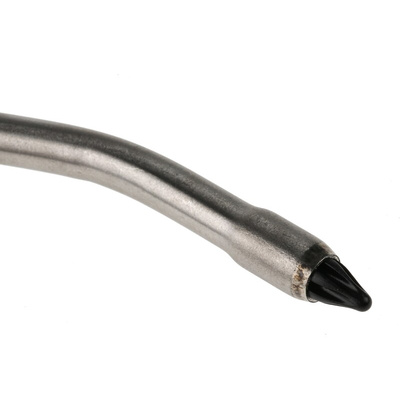

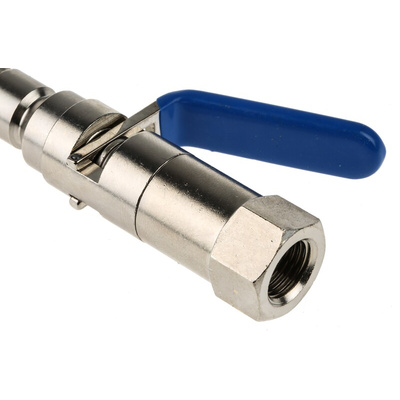

• This RS PRO compact air blow gun has been made with a nickel-plated brass body and a stainless-steel nozzle for optimum performance and longer life when working in difficult environments


• The blow gun is manually controlled, but fully adjustable and lightweight, making it easy to use across a range of applications


• Ideal for targeted precision working with optimum airflow


• Maximum working pressure 12 bar / 1.2 MPa / 174 psi


• Flow rate 416 Nl/min @ 6 bar – 516 Nl/min @ 8 bar


• LAeq 80 dBA @ 6 bar, LAeq 85 dBA @ 8 bar


• Force on handle 23.5 N @ 6 bar


• Blowing force kraft 3.8 N @ 6 bar


• Range of RS PRO nozzles available: 176-2228 and 176-2229

Applications:

An air gun or blow gun is a device that is normally part of the pneumatic or air pressure tools family and is a very versatile piece of equipment if used correctly. The air blow guns are often connected to a compressed air line that runs a high amount of pressure and when the trigger is released, the compressor's air will be released to create a gust of air. They often have adjustable settings to allow for lower air blasts or really strong blasts of air, dependant on the application they are used for. These types of air tool accessories are often used in industrial and manufacturing environments for tasks like:

• Workstation cleaning


• Blow-down of machined parts and machining stands


• Removing dust and drying parts on production, assembly, inspection and tooling stations

Standards and Certifications:

• 2003/10/CE Max. 85 dBA – 8 hr @ 6 bar or 5 hr @ 8 bar


• OSHA 1910.95 (b) Max. 90 dB 8 hr


• OSHA 1910.242 (b) Max. 30 PSI (2.1 bar) when blocked


• Compliance to REACH 1907/2006 RoHS 2011/65/CE


• PED 2014/68/UE and Silicone free
