70048LV.00500, Belden 2 Core Speaker Cable, 4 mm² CSA, 8.6mm od, Кабель

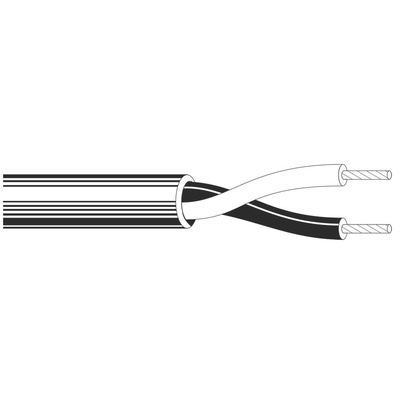

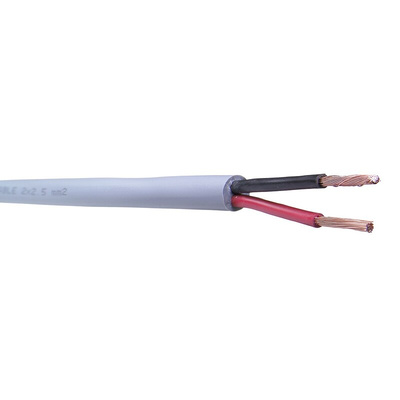

Belden LSZH 2x4.0mm², CPR B2ca Speaker Cable

Belden Speaker cables use OFHC conductors offer top performance. The copper conductors of Brilliance Low Cap OFHC Speaker cable have been manufactured using an upright shaft manufacturing process. The result of this process is a high conductivity copper conductor that is inherently free of impurities. This loudspeaker cable has Low Smoke Zero Halogen (LSZH) cable has a flame-resistant jacket that doesn't emit toxic fumes even if it burns, suitable for more rugged applications. Euroclasses are uniform assessment methods or classifications that reflect real-life environments for building products based on reaction-to-fire performance. Based on the cable’s performance, it is placed into the Euroclass system that indicates its behaviour during a fire.

Features and Benefits:

High-end quality speaker cable
Flexible for easy routing
Provides excellent sound quality
LSZH Jacket
Oxygen-Free Bare Copper providing High Conductivity

Applications:

Speaker cable, or speaker wire, is designed specifically to make an electrical connection between speakers and amplifiers, and as such is suited to several audio applications. From professional loudspeaker installation to domestic home cinema and HiFi connections, speaker cable is the most common and effective way to wire speakers in audio setups. Multicore speaker cables can be found in industrial and domestic environments such as:
Live stages and theatres
Audio & sound system
Professional studio
Touring
Hobbyist and custom audio setups

Temperature Range:

Storage Temp Range: -30°C to +70°C
Operating Temp Range (Flexible Install): -5°C To +60°C
Operating Temp Range (Fixed Install): -30°C To +70°C

Flammability, LS0H, Toxicity Testing:

IEC Flammability: IEC 60332-1-2
IEC 60754-1 - Halogen Amount: Zero
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: 2.5 μS/mm
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: 4.3
IEC 61034-2 - Smoke Density Min. Transmittance: 60%
