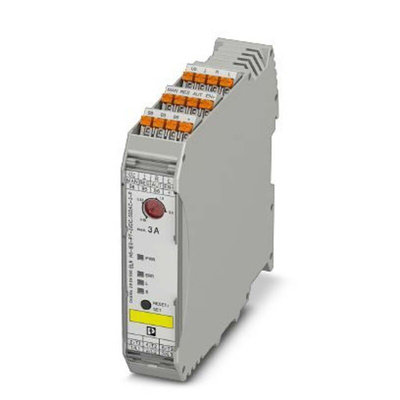

2909556, Phoenix Contact Advanced Motor Starter, 180 mA → 3 A (Load)

Hybrid motor starter as an alternative to a conventional reversing contactor. Reverses 3∼ AC motors up to 3 A, offers motor protection, ATEX, and emergency stop. Possible group shut-down, supply, and relay extension via DIN rail connector.

The modular 3-phase hybrid motor starter with reversing function and current monitoring provides the following functions:
Forward running
Reverse running
Motor overload protection
Emergency stop to performance level PLe
Additional advantages are provided by using the DIN rail connector adapter :
Emergency stop of the enable signal is also possible via the DIN rail connector, e. g. via a safety relay (PSR DC4...)
Power can also be supplied via the DIN rail connector by a system power supply (e. g., MINI-SYS-PS...) or via the PCB connector IMC 1,5/ 5-ST-3,81
Optional relay module (e. g., EM-2RSC/21AU-R/L-P) provides additional status information

Datasheet 2909556
