3273334, Phoenix Contact Distribution Block, 7 Way, 0.14 → 2.5 (Flexible) mm², 0.14 → 4 (Solid) mm², 57A, 450 V,, Распределительный блок

Phoenix Contact Red Distribution Block, 7-Way, 57A - PTFIX 6/6X2.5 RD - 3273334

Make load management simpler with this 450 V, 57 A power distribution block from Phoenix Contact. It's used to distribute electrical circuits from a single input source to several branch circuits.

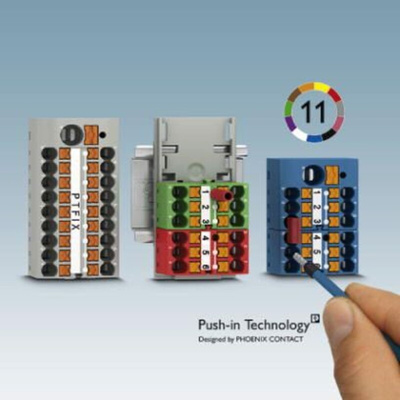

This distribution block can be used to make up to seven connections. It comes ready to mount and doesn't need manual bridging. Thanks to the time-saving push-in technology, you don't need any special tools to complete wiring tasks in the field. This unit is colour red, allowing you can code your equipment and avoid the risk of connection errors.
This unit is rated UL-94-V-0 by Underwriters Laboratories for fire safety, which means it won't burn longer than 30 seconds if exposed to flame. It's also been rigorously tested to ensure back of the hand and finger protection for operators.

• Polyamide (PA) housing
• Tested for oscillation and broadband noise

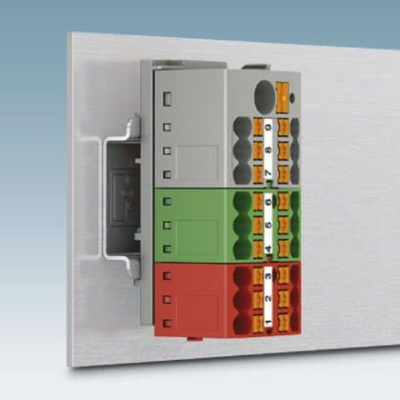

• Suitable for DIN rail mounting, direct mounting or adhesive mounting
• Wire size of 26 to 12 AWG (American wire gauge), and 26 to 14 AWG
• Dimensions of 28.6 (L) x 25.55 x (W) x 21.7 mm (H)
