3273356, Phoenix Contact Distribution Block, 13 Way, 0.14 → 2.5 (Flexible) mm², 0.14 → 4 (Solid) mm², 57A, 450 V,, Распределительный блок

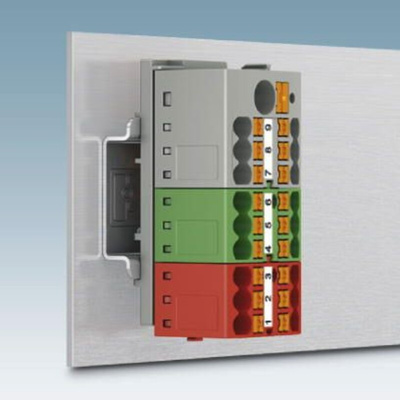

Phoenix Contact Red Distribution Block, 13-Way, 57A - PTFIX 6/12X2.5 RD - 3273356

Choose this red distribution block from Phoenix Contact to make load management simpler in industrial electrical systems. It helps direct power from one source to up to 12 branch circuits.

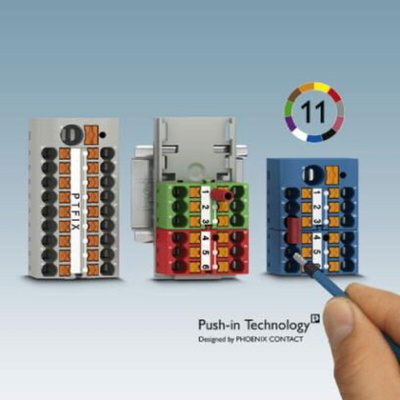

The unit is fitted with push-in terminals that ensure quick and easy installation. You won't need any special tools for wiring, and you can just snap the wires in to achieve a secure connection. It comes ready to mount and you can connect multiple blocks together with common bridging accessories.
This distribution block is rigorously tested for oscillation and broadband noise, so you can be confident of error-free and efficient signal transmission. This compact product is a popular choice in heavy-duty industrial settings such as control panels, machinery and commercial equipment, thanks to its sturdy and long-lasting design.

• Compatible with standard and transverse DIN rail mounting
• Colour-coded conductors and terminal points
• Tested for shock proofing, guaranteeing finger and back of the hand protection
• Wire size of 26 to 12 AWG (American wire gauge), and 26 to 14 AWG (flexible)
• Dimensions of 28.6 (L) x 41 x (W) x 21.7 mm (H)
