RS PRO Flange Mount Aluminium (Enclosure), SS 316L (Float) Float Switch, Float, SPDT, 250V ac Max, 30V dc Max

RS PRO Flange Mounting Float Switch, Aluminium (Enclosure), SS 316L (Float), SPDT, Float, 250 V, 30 V

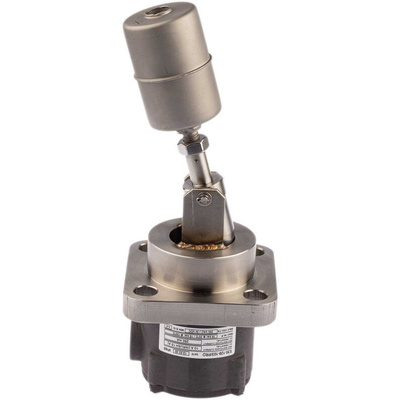

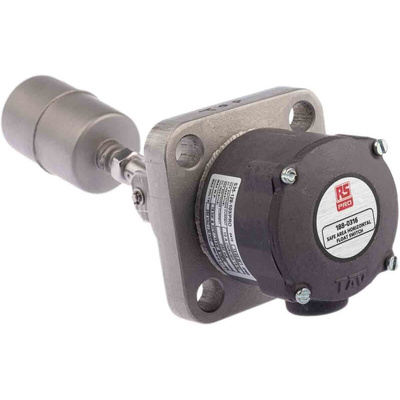

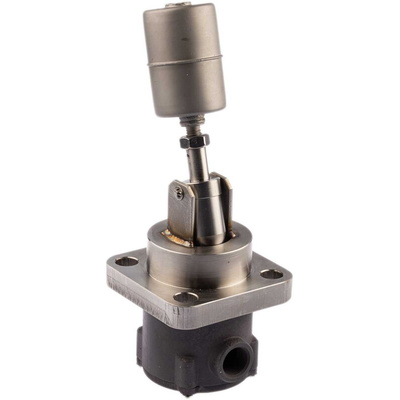

Need to switch between two circuits when water in a tank reaches a certain level? This single-pole, double-throw float switch from RS PRO can be used to activate an alarm, pump or another kind of circuit. The design features a pivoted float arm with a magnet on the inboard end. When the float arm rises, its magnet interacts with another magnet in the enclosure and switches instantaneously using the snap-action mechanism.
The switch is housed in an aluminium enclosure that's both corrosion-resistant and lightweight. The float is made from high-strength, low-maintenance austenitic stainless steel. As it can be used at temperatures up to +130°C and pressures up to 19 bar, it's well-suited to a variety of challenging industrial environments. You can fix it securely in place using a flange mount.

Features and Benefits

• Body made of aluminium (enclosure), SS 316L grade stainless steel (float)
• Gasket made of nitrile rubber
• Current rating of 3 A (inductive load), 4 A (resistive load)
• Maximum current of 3 A (inductive load), 4 A (resistive load)
• Float device type
• Maximum AC voltage of 250 V
• Maximum DC voltage of 30 V
• Maximum pressure of 15 bar at +130°C, 19 bar at +20°C
• Operating temperature range of 0°C to +130°C
• Flange mounting type
• SPDT (single pole double throw) switch output
