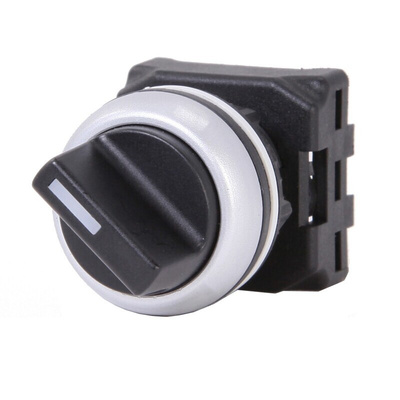

RS PRO 2 Position Selector Switch Head, 22mm Cutout

RS PRO Selector Switch Head - 2 Position, Latching, 22 mm cutout

Need reliable selector switch head? This RS PRO switch head is a two-position piece you can use with the RS PRO modular plastic push button series to build your own selector switch.
The product has a compact and robust design to ensure its durability. It has a contact block mounting clip and you can easily install it using a standard lock nut. You can also stack it along with up to six contact blocks. The switch head is very durable and has a mechanical life of more than one million uses.
It also has an Ingress Protection (IP) rating of IP65 to ensure it's protected from dust and low-pressure jets of water. The product complies with American (ANSI/ESD S20.20:2014) and British (BS EN 61340-5-1:2007) electrostatic discharge (ESD) requirements, so you can be certain the risk of a discharge is reduced.

Features and Benefits

• Selector switch actuator type
• Angle of throw of 30º
• Cutout diameter of 22 mm
• IP65 rated
• Two positions
• Latching switch actuation

RS PRO Datasheet

RS PRO Control & Signalling Guide
