1078960, Phoenix Contact PTV Series Grey Feed Through Terminal Block, 0.14 → 2.5mm², Single-Level, Push In Termination,

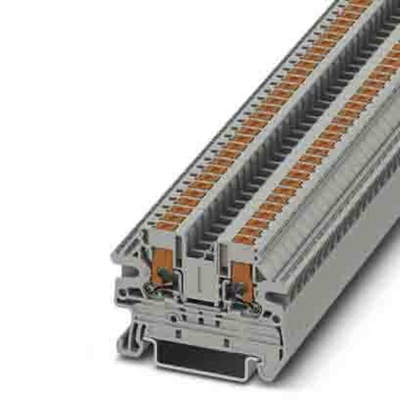

Phoenix Contact Grey PTV Feed-Through Terminal Block - PTV 2.5 - 1078960

This terminal block from Phoenix Contact's RTV series features lateral conductor routing. This means you can arrange your wiring clearly without needing to bend the wires, making your connections easier to identify and mark up.
Thanks to the unit's push-in connection technology you can build systems easily, without the need for tools to make or release connections. The device's high-quality hard-faced copper contacts are designed to ensure maximum conductivity for optimal data transfer.
The feed-through terminal block's housing is made from tough and durable PA (polyamide), which has a flammability rating of V0. This means the material will burn for no more than 10 seconds and won't give off flaming drips. Terminal blocks of this kind are commonly used in the transport, machine-building and plant engineering sectors.

• Current rating of 28 A
• 1 level
• Voltage rating of 800 V
• Wire size of 26 to 12 AWG (American wire gauge) and 26 to 14 AWG
• Cable size of 0.14 to 2.5 mm², 0.14 to 4 mm²
• Rated surge voltage of 8 kV

Note

The PTV series of terminal blocks feature vertical cable insertion. This lateral cable orientation also prevents the cable from bending.
