1078962, Phoenix Contact PTV Series Blue Feed Through Terminal Block, 0.14 → 2.5mm², Single-Level, Push In Termination,

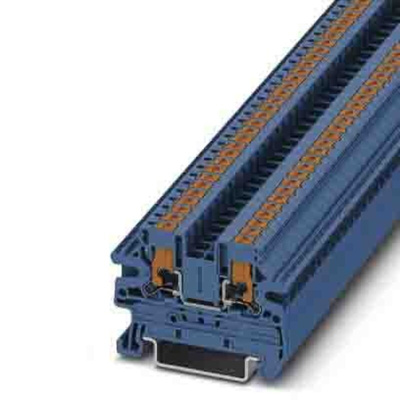

Phoenix Contact Blue Feed-Through Terminal Block - PTV 2.5 BU - 1078962

Enjoy direct and fast connection technology with this terminal block from Phoenix Contact. The unit's tool-free push-in connection technology will save you time, while its low conductor insertion force will significantly reduce wear and tear on wiring.
Lateral conductor routing from the terminal block to the cable duct makes it easy to attach and read wire markings. There's also no bending needed, so the risk of conductor damage is reduced. The terminal block features a compact and space-saving design for maximum packing efficiency. A PA (polyamide) housing makes it exceptionally strong and offers excellent resistance to abrasion and wear.
This feed-through terminal block is safe to use in aggressive environments as it's flame retardant and meets Underwriters' Laboratories 94 V-0 flammability standards. It's also highly resistant to vibration, shock and corrosion which makes it suitable for railway applications.

• Voltage rating of 800 V
• Current rating of 28 A
• 1 level
• Wire size of 26 to 12 AWG (American wire gauge), and 26 to 14 AWG
• Cable size of 0.14 mm² to 2.5 mm² and 0.14 mm² to 4 mm²

Note

The PTV series of terminal blocks feature vertical cable insertion. This lateral cable orientation also prevents the cable from bending.
