1078966, Phoenix Contact PTV Series Grey Feed Through Terminal Block, 0.14 → 2.5mm², Single-Level, Push In Termination,

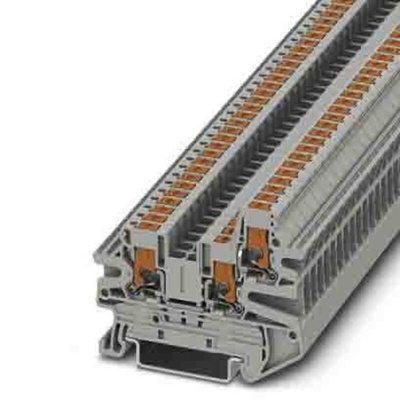

Phoenix Contact Grey Feed-Through Terminal Block - PTV 2.5-TWIN - 1078966

Identify cables quickly with this feed-through terminal block from Phoenix Contact. Its design allows for the lateral connection of conductors, which makes them easy to see and access. This also stops wires from bending unnecessarily, so wear and tear on your cables is reduced.
The compact unit allows for wiring in confined spaces, while its strong PA (polyamide) housing stands up well to regular use. Push-in connection technology lets you wire your application from the field to the controller consistently and provides secure and vibration-resistant joins. Even conductors as small as 0.14 mm² can be reliably attached without using any tools. To disconnect, simply push the release button.
This terminal block is suited to railway applications and tough industrial conditions thanks to its shock-resistant properties. It's also flame retardant and meets Underwriters' Laboratories 94 V-0 safety standards for flammable plastics.

• Voltage rating of 800 V
• Current rating of 28 A
• 1 level
• Includes a testing facility for improved efficiency
• Wire size of 26 to 12 AWG (American wire gauge), and 26 to 14 AWG
• Cable CSA (cross-sectional area) of 0.14 mm² to 2.5 mm² and 0.14 mm² to 4 mm²

Note

The PTV series of terminal blocks feature vertical cable insertion. This lateral cable orientation also prevents the cable from bending.
