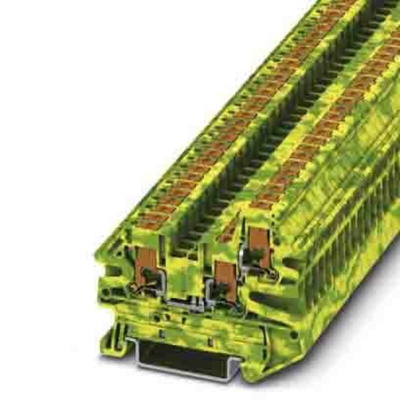

1078991, Phoenix Contact PTV Series Green, Yellow Feed Through Terminal Block, 0.14 → 2.5mm², Single-Level, Push In

Phoenix Contact Green and Yellow Feed-Through Terminal Block, 26 to 12 AWG - PTV 2,5-TWIN-PE - 1078991

This Phoenix Contact terminal block is designed for maximum contact reliability, even under extreme overload. Its high-performance conductor contact points resist periods of short-circuit current without sustaining any damage.
The compact ground terminal block has a space-saving design that lets you achieve maximum packing efficiency on your circuit board. It's suitable for modular expansion, thanks to the Phoenix Contact range of ground and feed-through terminal blocks, all with the same design. The unit's push-in connection technology means it's easily wired and disconnected for fast and simple use.
As this terminal block has a lateral push-in cable orientation, it's compatible with control cabinets designed to accommodate screw-in connections. It meets the highest industry safety standards and withstands challenging conditions and harsh environments. This makes it a good choice for chemical and railway applications.

• Can be easily snapped onto a DIN rail
• Green and yellow
• Single level
• Clearly arranged wiring without bend radius
• Wire size of 26 to 12 AWG (American wire gauge), and 26 to 14 AWG
• Cable CSA (cross-sectional area) of 0.14 mm² to 2.5 mm² and 0.14 mm² to 4 mm²

Note

The PTV series of terminal blocks feature vertical cable insertion. This lateral cable orientation also prevents the cable from bending.
