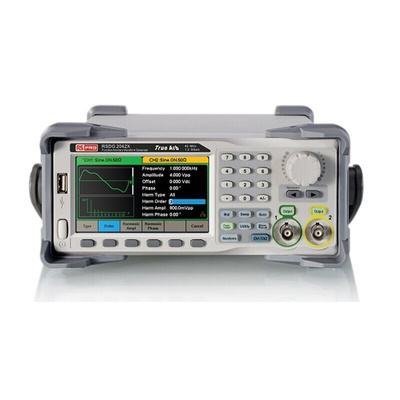

RS PRO SDG1032X Arbitrary Waveform Generator 30MHz, Генератор сигналов

1882473
Производитель: RS PRO
Цена за шт.
178581.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO RSDG1032X Function/Arbitrary Waveform Generator 30 MHz

The RS PRO RSDG1032X function/arbitrary waveform generator offers a range of excellent features including a maximum bandwidth of up to 30 MHz, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse and arbitrary waveforms, and the special square generator is capable of generating square waveforms up to 30 MHz in frequency with low jitter. With these advantages, the RSDG1032X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications. The RS PRO RSDG1032X also features a clear and precise 4.3" display with USB host, USB device and LAN interface, offering an excellent user-friendly experience.

Features and benefits

• Dual-channel, with bandwidth up to 30 MHz, and amplitude up to 20 Vpp
• 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
• Innovative EasyPulse technology, capable of generating lower jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Innovative TrueArb technology, based on a point-by-point architecture, supports any 2 pts ∼ 16 kpts Arb waveform with a sampling rate in range of 1 μSa/s ∼ 30 MSa/s
• Special circuit for Square wave function, can generate Square waves up to 30 MHz with jitter less than 300 ps+0.05 ppm of period
• Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
• Sweep and Burst functions
• Harmonics Generator function
• Waveform Combining function
• High precision Frequency Counter
• Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
• 4.3” TFT-LCD display

Applications

In many professions, the need to create an electrical waveform measurement is essential, this is where an arbitrary waveform generator comes into play. Arbitrary waveform generators allow the user to generate a custom waveform of any size and can offer a variety of analog and digital features, with enhanced specifications such as bandwidth, sampling rates, pulse, burst mode and more.
Waveform generators are commonly used in areas such as:

• Research
• Development
• Medical
• Education
• Electronic repairs
• Electronic hobbyists

FAQs

Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
Innovative TrueArb technology, based on a point-by-point architecture, supports any 2 pts ∼ 16 kpts Arb waveform with a sampling rate in range of 1 μSa/s ∼ 30 MSa/s
Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
Plenty of Analogue and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
Sweep and Burst functions
Harmonics Generator function
Waveform Combining function
High precision Frequency Counter
Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
4.3” TFT-LCD display

Is this calibrated?

Yes, this model is calibrated.

What is supplied with the unit?

Quick Start x 1
Power Cord x 1
Calibration Certificate x1
USB Cable x 1

Техническая спецификация
pdfRS PRO Datasheet
Вес:
3.4кг
Взлет-Падение Времени:
22.4 (Pulse) s, 4.2 (Square) ns
Высота:
107.2мм
Длина:
260.3мм
Максимальная амплитуда выходного сигнала:
20В Pk-Pk
Максимальная частота:
30МГц
Максимальная частота выборки:
150Msps
Максимальная частота треугольных сигналов:
500кГц
Минимальная длительность импульса:
32.6нс
Минимальная частота треугольных сигналов:
1мкГц
Модель р:
SDG1032X
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
0°C
Развертка:
Линейный, Логарифмический
Размеры:
260.3 x 295.7 x 107.2мм
Разрешение:
1 мкГц
Сигналы произвольной формы:
Да
Тип интерфейса:
LAN, USB Device, USB Host
Тип коннектора:
USB
Ширина:
295.7мм
