RS PRO SDG1062X Arbitrary Waveform Generator, 60MHz Max - RS Calibrated, Генератор сигналов

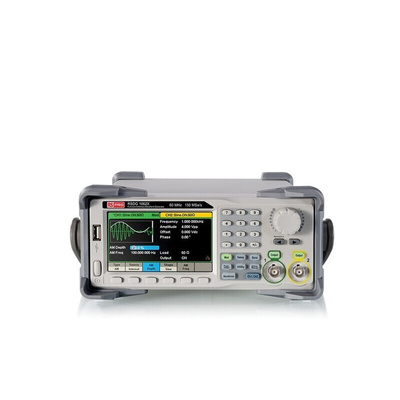

RS PRO RSDG1062X Function/Arbitrary Waveform Generator 60 MHz

The RS PRO RSDG1062X function/arbitrary waveform generator offers a range of excellent features including a maximum bandwidth of up to 60 MHz, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse and arbitrary waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, the RSDG1062X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications. The RS PRO RSDG1062X also features a clear and precise 4.3" display with USB host, USB device and LAN interface, offering an excellent user-friendly experience.

Features and Benefits:

Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
Innovative EasyPulse technology, capable of generating lower jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
Innovative TrueArb technology, based on a point-by-point architecture, supports any 2 pts ∼ 16 kpts Arb waveform with a sampling rate in range of 1 μSa/s ∼ 30 MSa/s
Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
Sweep and Burst functions
Harmonics Generator function
Waveform Combining function
High precision Frequency Counter
Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
4.3” TFT-LCD display

Applications:

In many professions, the need to create an electrical waveform measurement is essential, this is where an arbitrary waveform generator comes into play. Arbitrary waveform generators allow the user to generate a custom waveform of any size and can offer a variety of analog and digital features, with enhanced specifications such as bandwidth, sampling rates, pulse, burst mode and more.
Waveform generators are commonly used in areas such as:

Research
Development
Medical
Education
Electronic repairs
Electronic hobbyists

FAQs

What is supplied with the unit?

Quick Start x 1
Power Cord x 1
Calibration Certificate x1
USB Cable x 1
