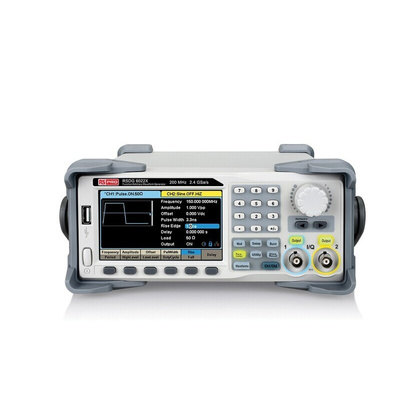

RS PRO RSDG6022X Pulse/Arbitrary Waveform Generator 200 MHz (RSCAL)

The RS PRO RSDG6022X function/arbitrary waveform generator is a highly reliable device used to create user generated waveforms. This waveform generator offers a range of excellent features including a maximum bandwidth of up to 200 MHz maximum bandwidth, 2.4GSa/s sampling rate and 16-bit vertical resolution. Unlike traditional DDS generators that can produce weak results when generating arbitrary, square and pulse waveforms, the RSDG6022X includes True Arb & EasyPulse technology to produce far superior results. The RS PRO RSDG1062X also features a clear and precise 4.3" touch screen display with USB host, USB device and LAN interface, offering an excellent user-friendly experience.

Features and benefits

• Dual-channel, 200MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
• Clear results with the high-performance sampling system with 2.4GSa/s sampling rate and 16-bit vertical resolution
• Multi-function signal generator, meeting requirements in wide range
• Sweep and burst function
• Harmonic function
• Waveform combining function
• 196 built-in arbitrary waveforms
• High precision frequency counter
• Standard interfaces: USB host, USB device, Lan
• 4.3” touch screen display to enhanced user experience

Applications

In many professions, the need to create an electrical waveform measurement is essential, this is where an arbitrary waveform generator comes into play. Arbitrary waveform generators allow the user to generate a custom waveform of any size and can offer a variety of analog and digital features, with enhanced specifications such as bandwidth, sampling rates, pulse, burst mode and more.

Waveform generators are commonly used in areas such as:

• Research
• Development
• Medical
• Education
• Electronic repairs
• Electronic hobbyists

FAQs

Is this calibrated?

Yes, this item is calibrated.

What is supplied with the unit?

X1 Quick Start
X1 Power Cord
X1 USB Cable
X1 Calibration Certificate
X1 BNC Coaxial Cable
