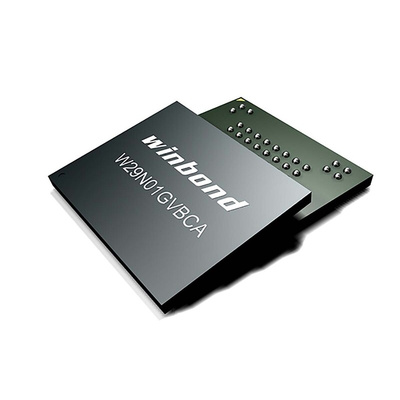

Winbond SLC NAND 1Gbit Parallel Flash Memory 63-Pin VFBGA, W29N01HVBINF, Флэш-память

Density : 1Gbit (Single chip solution)
Vcc : 2.7V to 3.6V
Bus width : x8
Operating temperature
Industrial: -40°C to 85°C
Single-Level Cell (SLC) technology.
Organization
Density: 1G-bit/128M-byte
Page size
2,112 bytes (2048 + 64 bytes)
Block size
64 pages (128K + 4K bytes)
Highest Performance
Read performance (Max.)
Random read: 25us
Sequential read cycle: 25ns
Write Erase performance
Page program time: 250us(typ.)
Block erase time: 2ms(typ.)
Endurance 100,000 Erase/Program Cycles(1)
10-years data retention
Command set
Standard NAND command set
Additional command support
Copy Back
Lowest power consumption
Read: 25mA(typ.3V),
Program/Erase: 25mA(typ.3V),
CMOS standby: 10uA(typ.)
Space Efficient Packaging
48-pin standard TSOP1
48-ball VFBGA
63-ball VFBGA

1Gb SLC NAND Flash Memory with uniform 2KB+64B page size.

Bus Width: x8
Random Read: 25us
Page Program Time: 250us(typ.)
Block Erase Time: 2ms(typ.)

Datasheet W29N01HVBINF
