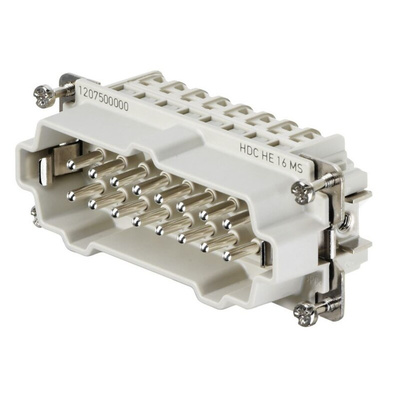

1207500000, Weidmuller Heavy Duty Power Connector Insert, 16A, Male, HE Series, 16 Contacts

Weidmuller Heavy-Duty Power Connector Insert, 500V AC/DC Voltage Rating, Screw Connections - HE Series - 1207500000

Securely connect up to 16 contacts with this heavy-duty power connector insert from Weidmuller. Thanks to its glass-fibre reinforced PC housing, it stands strong in the face of impact and wear. Screw connections fitted with a wire protection spring ensure it doesn't come loose, even when your equipment is on shaky grounds. A wide operating temperature range of -40°C to +125°C means it keeps its cool in harsh industrial environments.

Features & Benefits

• Voltage rating of 500V AC/DC for use in medium-power applications
• Copper alloy contacts with silver passivated finish offer excellent conductivity and resistance to corrosion for a reliable connection
• Compact dimensions of 35.7 (H) x 34 (W) x 84.5mm (D) to maximise packing space on a crowded panel
• Withstands up to 500 plugging cycles, so you can count on it for the long haul

Applications

• Robotics
• Transport
• Pneumatics

What size wires can I use with this connector?

You can use this connector with solid or stranded wires sized between 0.5 and 2.5 mm², making it a versatile piece of kit.

1207500000 - Data Sheet

Catalogue - Heavy Duty Connectors
