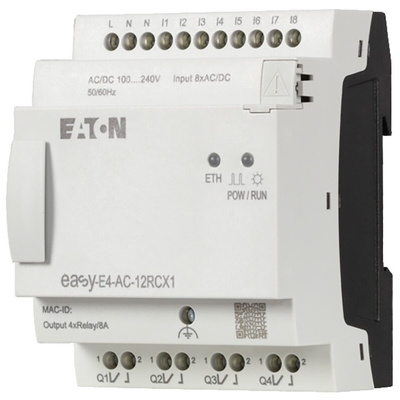

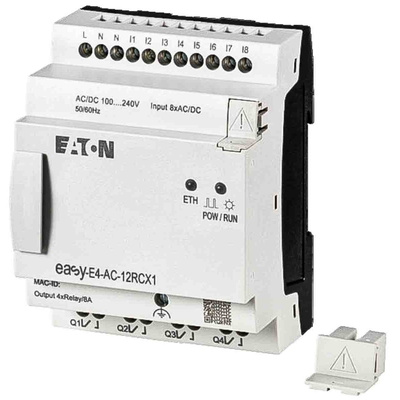

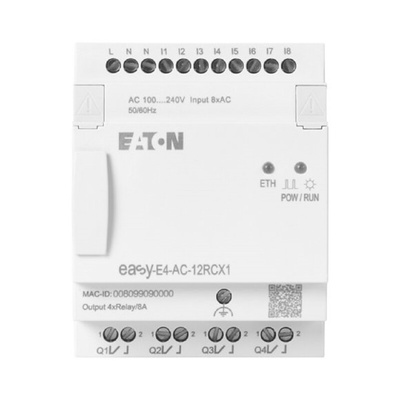

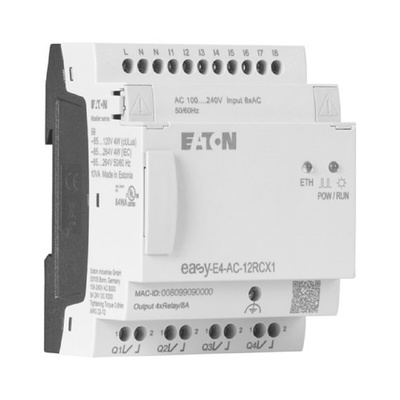

197216 EASY-E4-AC-12RCX1, Eaton EasyE4 Series Control Relay, 100 → 240 V ac/dc Supply, Digital, Relay Output, 8-Input, Digital Input, Логический модуль

Eaton Control Relay, DIN Rail Mounting, 100 to 240V AC/DC Supply Voltage - Easy Series - 197216 EASY-E4-AC-12RCX1

With this control relay from Eaton, you can get multiple industrial devices marching to the same beat. Pair it with your EasyE4 PLC (204-1335) to control the opening and closing of electrical circuits according to set conditions. The relay has eight digital inputs to let attached sensors pass on info about the external environment. You can use the four outputs to control equipment such as actuators, motors and valves. It's a handy multitasker you can set to work with production lines, plant equipment and building automation systems.

Features & Benefits

• Ethernet connectivity for fast and reliable networking
• Operates reliably in a temperature range between -25°C and +55°C
• DIN rail mounting for quick and easy installation
• LCD display for at-a-glance input status monitoring
• HMI allows for user-friendly control

What programming language does this control relay use?

You can programme it using Function Block Diagram. This is an easy-to-use graphical language for PLCs that uses functions and input/output variables for process design.

How big is this control relay?

It has compact dimensions of 71.5 (L) x 59.6 (W) x 110 mm (D), so takes up minimal space.

Suitable replacement for:
274105 EASY512-AC-RCX
274116 EASY719-AC-RCX
256268 EASY819-AC-RCX

Note

Eaton formerly known as Moeller

EASY-E4-AC-12RCX1 Datasheet

Brochure - easyE4

Instruction Leaflet - easyE4

User Manual - easyE4

EATON easyE4 Series Cross Reference List

Catalogue - Solutions For Machinery And Systems
