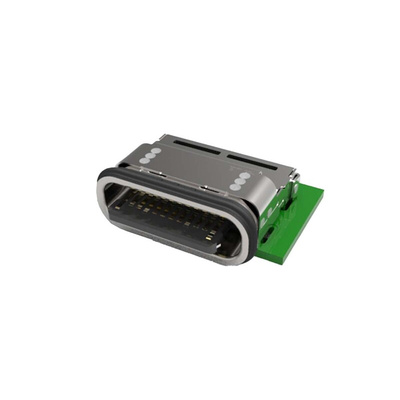

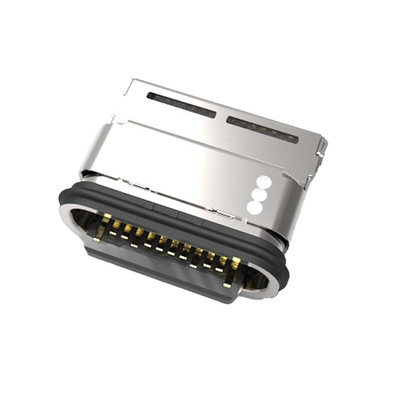

2305018-2, TE Connectivity Right Angle, SMT, Socket Type C 3.1 USB Connector, Разъем

TE Connectivity 2305018-2

Integral Locking Latch=Without, USB Type=C, USB Version=3.1 Gen 2, Connector Style=Receptacle, Orientation=Right Angle, Shell Plating Material=Nickel, Contact Current Rating (Max)=5 A, Contact Mating Area Plating Thickness=.75 μm, Contact Termination Type=Surface Mount, Termination Method to Printed Circuit Board=Surface Mount, Termination Method=Hybrid, Locating Posts=Without, Mounting Location=Top, Locking Feature=Without, PCB Mount Retention Type=SMT + Through Hole, Connector Mounting Type=Board Mount, Housing Color=Black, Soldering Temperature (Max)=260 °C, Mating Cycles (Max)=10000, Operating Temperature Range=-30 – 85 °C, Pick & Place Capable=No, Pick and Place=None, Circuit Application=Power & Signal, Industry Standard=IEC, Degree of Protection=IPX8, Packaging Method=Reel, Packaging Quantity=800

Datasheet 2305018-2
