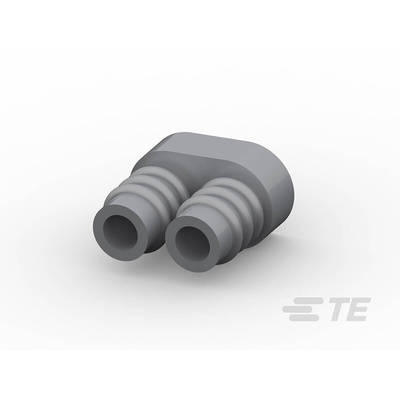

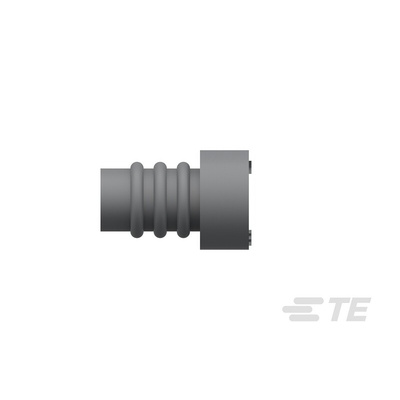

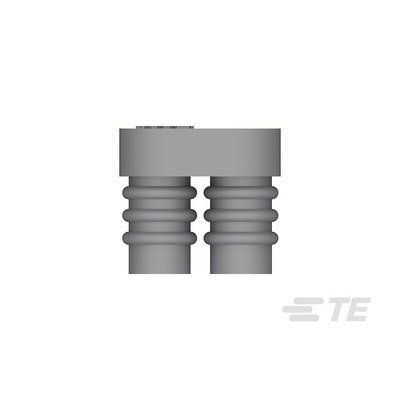

2213782-2, TE Connectivity Universal MATE-N-LOK Series Sealing Cap

TE Connectivity’s (TE) Universal MATE-N-LOK wire seal installs into the Universal MATE-N-LOK connector housings and accommodates Universal MATE-N-LOK contacts (socket and plug). When properly assembled, the wire seal provides water ingress protection into the connector housings at the wire entry locations. The socket and plug contacts are crimped to 18 - 10 AWG wire conductors with outside insulation diameters ranging from a 2.03 to 4.07mm. The wire seals are purchased separately and primarily used in wire-to-wire applications. An accessory interface seal provides ingress protection at the mating connectors’ interface.

Provides ingress protection from water when installed into the connector housing
Accommodates a wire range from 18-10AWG
Upgrades the Universal MATE-N-LOK connectors to a waterproof system
Applications
Outdoor LED Lighting
Appliances
HVAC
Fire & Security
Power Supplies

Datasheet 2213782-2
