P3GA-11, Omron Socket For Use With H3CR-A Series, H3CR-F Series, H3CR-H Series

11 Pin Timer, H3CR-A

Functions - 143,211,453,521,611,612
LED indication of power and contact status

Note

Adaptor is not supplied and must be ordered separately see stock number 342-916

Standards

Conforms to EMC standards.

Approvals

UL, CSA.

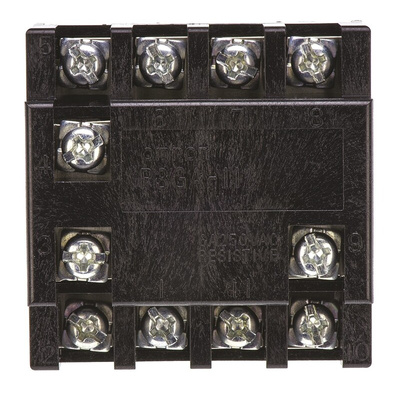

OMRON Socket, 11-Terminal Type, Plastic Housing - P3GA-11

When you need to step up the safety of your manufacturing processes, opt for this socket from OMRON. It has 11 terminals arranged in a circular shape. This lets you achieve a precise fit with matching pins in timer relays from the H3CR-A, H3CR-F and H3CR-H series. The socket latches onto the back of the timer, so you can be sure it's securely powered when plugged into a voltage source. You can use this unit together with your timer to support devices that demand precision, including lighting fixtures and medical equipment.

Features & Benefits

• Terminal dial is 27mm in diameter for a neat fit with your timer relay
• Socket panel has compact dimensions of just 45 (H) x 45 (W), so it won't use much space in crowded installations
• 250V AC maximum voltage makes it suitable for high-powered industrial applications

Applications

• Pharmaceutical development facilities
• Food and beverage production
• Industrial automation

Is this socket safe to touch?

To make it touch-proof, add a plastic Y92A-48G terminal cover (827-6820) that fits neatly over the terminals to protect your fingers during use.

Datasheet

Datasheet - Solid-State Timer
