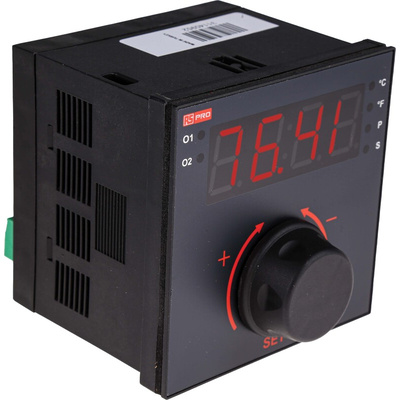

RS PRO PID Temperature Controller, 96 x 96mm 1 Input, 2 Output Relay, SSR, 230 V ac Supply Voltage, Регулятор температуры

RS PRO PID Temperature Controller, 230 V ac

This PID (proportional integral derivative) temperature controller from RS PRO is a robust device ideal for the control and maintenance of temperature control, with the ability to adjust accordingly depending on the required temperature. This high quality PID controller utilises thermocouple: J, K, R, S, T and L (IEC584.1)(ITS90) sensors and features TC/RTD temperature sensor inputs.

Features and Benefits:

• 4 digits display


• Temperature sensor input (TC / RTD)


• Programmable ON/OFF, P, PI, PD and PID control types


• Adjustable Process Offset Value


• Adaptation of PID coefficients to the system by Auto Tune/Self Tune


• Programmable control and alarm functions for control outputs


• IP65 protection at front, IP20 at rear


• Operating Temperature : 0 C to +50 C

Application

PID (proportional integral derivative) temperature controllers are devices used to regulate and control temperature in a range of industrial control applications. They are available in various sizes and can accept a variety of temperature sensors as an input including RTD or thermocouple to compare the actual temperature to the set point temperature.

RS PRO Datasheet

RS Instruction sheet

Additional RS Instruction sheet
