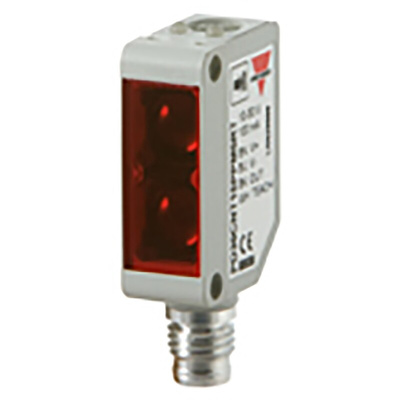

PD30CNG02PPM5RT, Carlo Gavazzi Retroreflective Photoelectric Sensor, Miniature Sensor, 2 m Detection Range, Фотоэлектрический датчик

The PD30CNG02 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where detection of transparent objects are needed. Compact housing and high power LED for excellent performance size ratio. The Teach-In function for adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC).A remote teach feature allow the sensor to be set up from e.g. a PLC

Miniature sensor range
Range: 2 m, with reflector
Sensitivity adjustment by Teach-In programming
Modulated, red light 617 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function programmable
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Cable and plug versions
Excellent EMC performance
Remote teach features

Datasheet PD30CNG02PPM5RT
