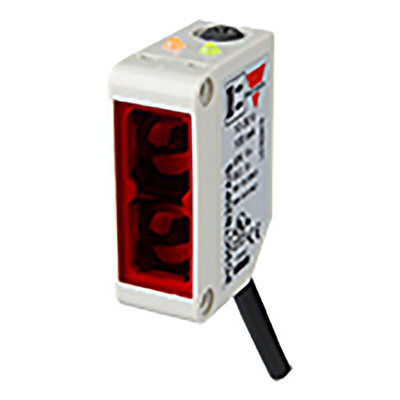

PD30CTB20PAIS, Carlo Gavazzi Diffuse-Reflective Photoelectric Sensor with Miniature Sensor, 200 mm Detection Range, Фотоэлектрический датчик

The PD30CTB20 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where high accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The potentiometer function for adjustment of the sen-sitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is NO and NC out-Put.

Miniature sensor range
Range: 200 mm
Sensitivity adjustment by top potentiometer
Modulated, infrared light 850 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Excellent EMC performance
Exellent colour matching

Datasheet PD30CTB20PAIS
