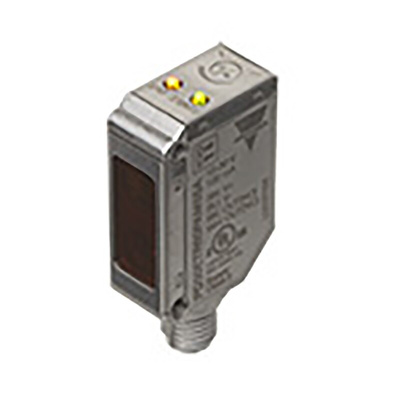

PD30ETB20PAM5SA, Carlo Gavazzi Diffuse-Reflective Photoelectric Sensor with Miniature Sensor, 200 mm Detection Range, Фотоэлектрический датчик

Miniature sensor range
Range: 200 mm
Sensitivity adjustment by potentiometer
Modulated, infrared light 850 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Cable and plug versions
Excellent EMC performance
The invisible infrared light beam eliminates discomfort for people working near the sensor
Power supply necessary only on one side of the application
Detects presence or absence of objects by cutting off the background information
The detection distance is very independent of the colour of the object to detect

Datasheet PD30ETB20PAM5SA
