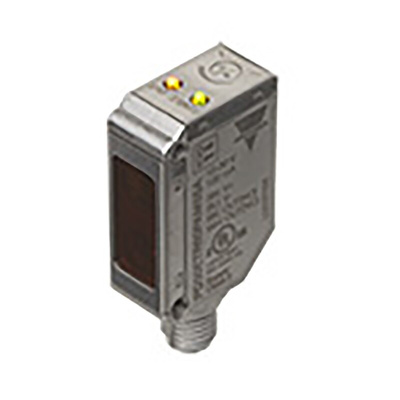

PD30ETT15M5, Carlo Gavazzi Through-Beam Photoelectric Sensor with Miniature Sensor, 15 m Detection Range, Фотоэлектрический датчик

The PD30ET... stainless steel sensors are built with high-quality materials and designed for harsh environments. They are designed for use in environments where high-pressure cleaning, cleaning agents and disinfectants are used on a daily basis. The strong stainless steel (AISI316L) together with high-quality plastic materials like PEEK, PPSU, and PES sealings of FKM ensure a safe and excellent mechanical resistance. The compact sensor design is ideally suited to confined spaces.

Miniature sensor range
Sensing range: 15 m
Sensitivity adjustment by potentiometer
Modulated, infrared light 850 nm
Supply voltage: 10 to 30 VDC
Output: 100 mA, NPN or PNP preset
Make and break switching function
LED indication for output, stability and power ON
Protection: reverse polarity, short circuit and transients
Cable and plug versions
Excellent EMC performance

Detects presence or absence by breaking the light beam between the emitter and receiver

Datasheet PD30ETT15M5
