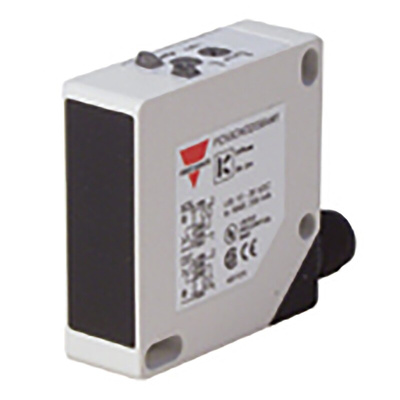

PC50CNR10BAM1, Carlo Gavazzi Retroreflective Photoelectric Sensor, Block Sensor, 10 m Detection Range, Фотоэлектрический датчик

The PC50CNR. is a family of general purpose retro-reflective sensors in a compact square 17 x 50 x 50 mm reinforced PC/ABS-housing. They are useful in applications where basic sensors provide adequate sensing performance. The long sensing range together with sensitivity adjustment gives a very flexible sensor. The DC types are with a transistor output and the configuration is fully programmable (NPN, PNP, NO and NC).

Range: 10 m
Adjustable sensitivity
Modulated, infrared light
Supply voltage: 10 to 30 VDC
Output: 200 mA, NPN or PNP selectable
Make and break switching function
LED for output indication, signal stability and power ON
Protection: reverse polarity, short-circuit, transients
Cable and plug versions
High degree of EMC

Datasheet PC50CNR10BAM1
