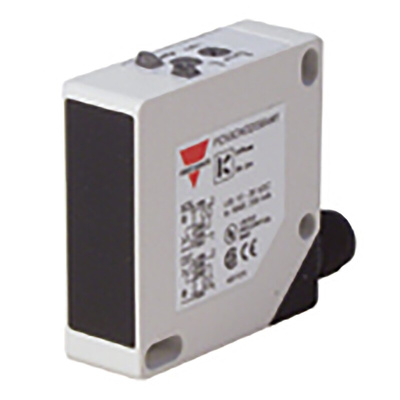

PC50CNT20BAM1, Carlo Gavazzi Through Beam Photoelectric Sensor, Block Sensor, 20 m Detection Range, Фотоэлектрический датчик

The PC50CNT. is a family of general purpose through-beam sensors in a compact square17 x 50 x 50 mm reinforced PC/ABS-housing. They are useful in applications where basic sensors provide adequate sensing performance. The long sensing range together with sensitivity adjustment gives a very flexible sensor. The DC types are with a transistor output and the configuration is fully programmable (NPN, PNP, NO and NC)

Range: 20 m
Adjustable sensitivity
Modulated, infrared light
Supply voltage: 10 to 30 VDC
Output: 200 mA, NPN or PNP selectable
Make and break switching function
LED for output indication, signal stability and power ON
Protection: reverse polarity, short circuit, transients
Cable and plug versions
Excellent EMC

Datasheet PC50CNT20BAM1
