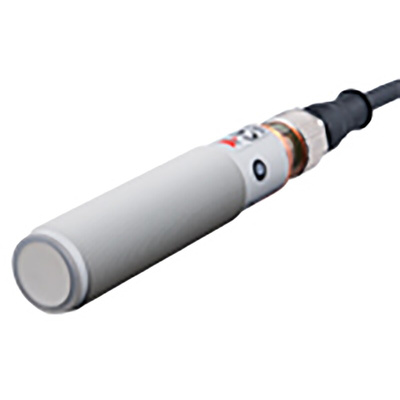

UA18CAD22PGM1TI, Carlo Gavazzi Ultrasonic Barrel-Style Proximity Sensor, M18 x 1, 200 → 2200 mm Detection, PNP Output, 15, Датчик

A family of diffuse ultrasonic sensors with sensing range from 50-400 mm, 100-900 mm and 200-2200 with a resolution as low as 1.0 mm. The sensor contains both an analogue and a digital output. The output is either 0-10V or 4-20 mA and the digital output NPN or PNP, NO or NC which forms a window detection. The sensor is the ideal choice for distance measurement, level measurement, diameter measurement or loop control. Due to use of microprocessor control the digital filtering makes the sensor immune to most electromagnetic interferences.

Cylindrical M18 PBT housing
Sensing distance: 50-2200 mm
Power supply: 15 to 30 VDC
Outputs: 0-10 VDC or 4-20 mA and one switching output NPN or PNP, NO or NC
Linearity error 1%
Repeatability 0.5%
Beam angle. ±7° or ±8°
Protection: Short-circuit, reverse polarity and overvoltage
2 m cable or M12 plug
