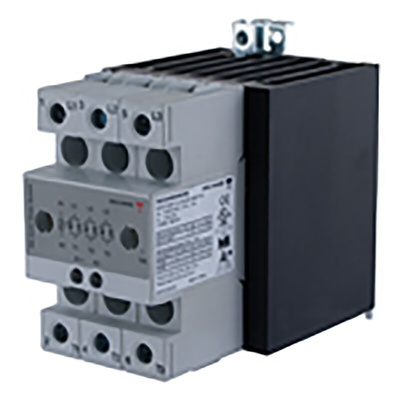

RGC2A60D40KGE, Carlo Gavazzi RGC2 Series Solid State Relay, 50 A Load, DIN Rail Mount, 660 V ac Load, 32 V dc Control, Реле

Panel space savings. Concentrated power, the RGC 3-phase switching range can handle up to 65 AAC per pole (or 75 AAC for 2-pole switching) in a 70mm wide footprint
Long lifetime. Wire bonding technology reduces thermal and mechanical stresses of the output chips resulting in a larger number of possible operational cycles compared to other assembly technologies
Low machine downtime. Integrated overvoltage protection prevents the solid state relay from breaking down due to uncontrolled transients that may occur on the lines
Ease of use. The RGC2A and RGC3A are ready to use solutions provided with integrated heat sink thus eliminating the need for the user to calculate the size of heat sink needed for adequate thermal dissipation
Fast wiring. Power connections for models rated ≥30A are equipped with terminals that can handle cables up to 25mm2/ AWG3 cables
Integrated monitoring for timely detection of malfunctions. Optional feature on the 3-phase RGC series that enables detection of mains loss, over temperature and solid state relay or load malfunction
3-phase zero cross switching solid state contactor for 3-pole or 2-pole switching
Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C

Datasheet RGC2A60D40KGE
