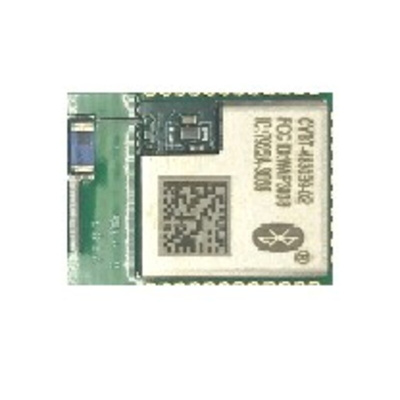

Cypress Semiconductor CYBT-483039-02 Bluetooth Module 5.0, Модуль

The CYBT-483039-02 is a dual-mode Bluetooth BR/EDR and Low Energy (BLE) wireless module solution. The CYBT-483039-02 includes onboard crystal oscillators, passive components, PA/LNA, and the Cypress CYW20719 silicon device. The CYBT-483039-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols (UART, SPI, I2C, I2S/PCM). The CYBT-483039-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a 12.75 ´ 18.59 ´ 1.80 mm module form-factor. The CYBT-483039-02 includes an integrated chip antenna, on-board external power/low noise amplifier.

Module size: 12.75 mm ´ 18.59 mm ´ 1.80 mm
Up to one kilometer bidirectional line-of-sight communication (FCC/ISED)
Up to 15 GPIOs
1024-KB flash memory, 512-KB SRAM memory
Industrial temperature range: -30 °C to +85 °C
Integrated ARM Cortex-M4 microprocessor core with floating point unit (FPU)
