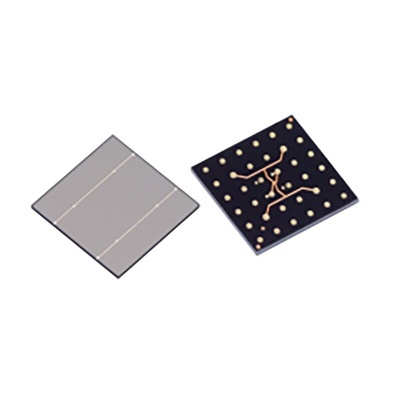

Broadcom, AFBR-S4N66C013 Visible Light Photomultiplier, 420nm, Surface Mount CSP package, Фотодиод

Broadcom® Silicon Photomultiplier (SiPM) AFBR-S4N66C013 detects low-level pulsed light sources such as Cherenkov or scintillation light from organic and inorganic scintillator materials. The NUV-HD SiPM uses an ultra-sensitive precision measurement of single photons that will detect light wavelengths from near-ultraviolet (UV) in the visible light spectrum. As well as having a high sensitivity towards the blue light region of the light spectrum.
The single silicon multiplier uses through silicon via (TSV) technology and has an active area of 6.14 x 6.14 mm2. Although tiling multiple AFBR-S4N66C013 silicon photomultipliers can create a larger area by creating an array with hardly any edge loss.
Applications include X-ray and gamma ray detection, astrophysics, time correlated single photon counting, gamma ray spectroscopy. The Broadcom® AFBR-S4N66C013 can be utilised in areas such as life sciences n flow cytometry, nuclear medicine as well as safety and security.

Features
•High photon detection efficiency (PDE) of more than 55% at 420 nm
•High fill factors
•Single photon time resolution (SPTR) and coincidence time resolution (CRT)
•TSV technology (4 side tileable)
•Cell pitch (SPAD pitch) 30 ´ 30 μm2
•Highly transparent glass protection layer
•Operating temperature range from –40°C to +85°C
•RoHS and REACH compliant
•Lead free
•Detecting light from organic (plastic) and inorganic scintillator materials examples: LSO, LYSO, BGO, NaI, CsI, BaF, LaBr.

Datasheet AFBR-S4N66C013
