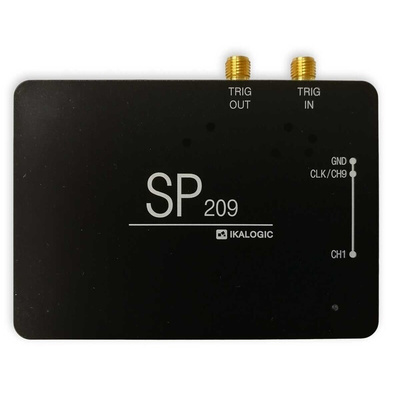

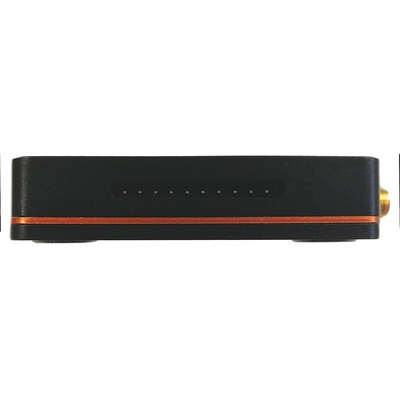

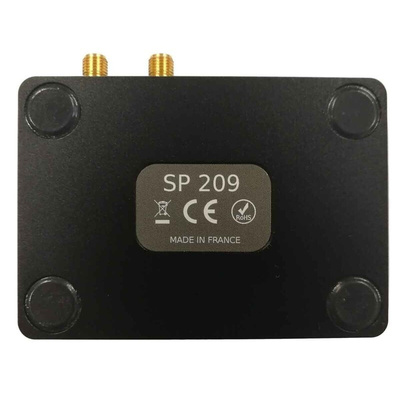

IKALOGIC SP209 Logic analyzer USB, Логический анализатор

9 logic channels with adjustable thresholds (1.8V, 2.5V, 3.3V, 5V)
State of the art input stage, with Schmitt triggers that eliminate glitches on slow signals
200 MHz sampling rate, with all 9 channels used
External clock option (state mode), up to 50MHz
Precise trigger-In and trigger-Out signals on SMA ports
Samples compression and streaming via USB
2Gb DDR-3 memory kicks-in when USB isn't fast enough
Embedded receivers on industrial version: SP209i (RS232, CAN, LIN, RS485)
Guaranteed performances on all hosts
Capture very long sequences of logic signals (up to 2 Tera samples)
Software lets you view decoded signals in many different levels of abstractions (Packets or detailed bits and bytes)
Target very specific event thanks to a versatile multi-stage trigger system
Device performance do not depend on USB connection bandwidth
Software running on Windows, macOS and Linux
Software is free, intuitive and very easy to use
Synchronize captured samples with other lab instruments via Trigger IN and OUT ports
Premium quality micro-grabbers probes set
