2907916, Phoenix Contact, PLT-SEC-T3-24-FM-UT Surge Protection Device 24 V ac/dc Maximum Voltage Rating 0.026kA Maximum Surge

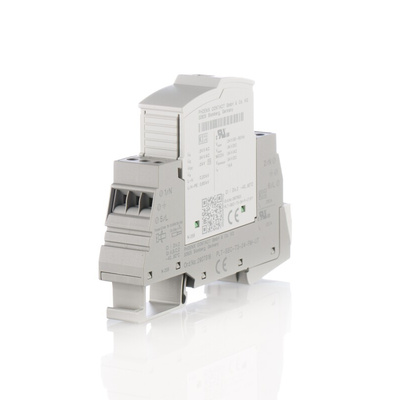

Phoenix Contact Surge Protection Device, 24V AC/DC, 0.026kA - PLT-SEC-T3-24-FM-UT - 2907916

Protect single-phase power supply networks with this surge suppressor from Phoenix Contact. The unit is conveniently supplied ready to install and features user-friendly pluggable connections for quick and easy maintenance.
Thanks to the surge protector's predictive testing feature, you're conveniently alerted to problems before they occur. Its durable nylon housing features high electrical and temperature resistance to safeguard operators from shocks or burns. An integrated status indicator gives a clear and quick visual indication as to the unit's working function. As it has a wide operating temperature range of -40°C to +80°C, this versatile device can be relied upon in tough industrial conditions.
Use this suppressor to limit the risk of low-level surges damaging sensitive electronic circuits in components such as computers and digital screens. Its space-saving design offers maximum packing efficiency in a control cabinet.

Features & Benefits

• IP20 (ingress protection) rating indicated protection from human touch and dirt particles larger than 12mm
• Dimensions of 17.7mm (length) x 93.4 (height) x 74.5mm (depth)
• Suitable for use in conditions where shocks and vibration are likely
• Meets UL94-V0 (Underwriters' Laboratories) flammability rating so is non-combustible
• Almost instantaneous response time of 100ns

Datasheet 2907916

Instruction Sheet - 2907916

Line Drawing - 2907916
