2470, Keithley 2400 Series Source Meter, 200 mV → 1000 V, 1-Channel, 10 nA → 1 A, 20 W Output, Источник-измеритель

Keithley 2470 Graphical Source Measure Unit (SMU), 1100 V/1 A 10fA meas.resolution, Programmable

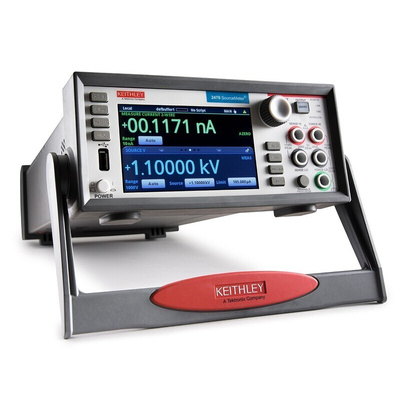

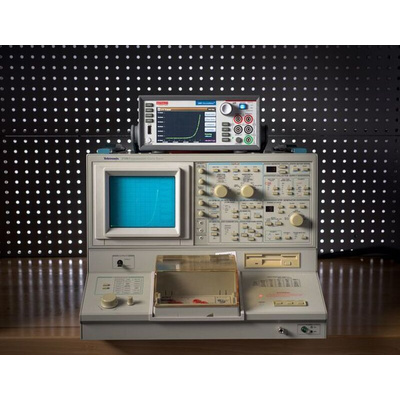

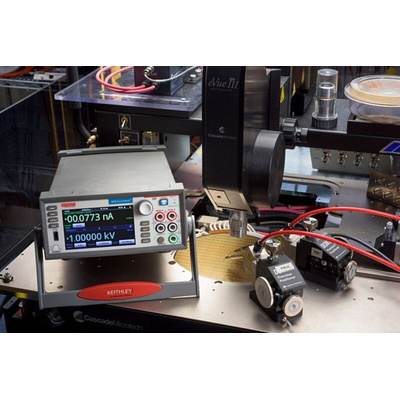

The 2470, Keithley’s next-generation SourceMeter® source measure unit (SMU), a 1000V, 1A, 20W instrument, truly brings Ohm’s law (current, voltage, and resistance) testing right to your fingertips. Its innovative graphical user interface (GUI) and advanced, capacitive touchscreen technology allow intuitive usage and minimize the learning curve to enable engineers and scientists to learn faster, work smarter, and invent easier. With its 1100V and 10 fA capability, the 2470 is optimized for characterizing and testing high voltage, low leakage devices, materials, and modules, such as silicon carbide (SiC), gallium nitride (GaN), power MOSFETs, transient suppression devices, circuit protection devices, power modules, batteries, and much more. These new capabilities, combined with Keithley’s decades of expertise in developing high precision, high-accuracy SMU instruments, make the 2470 a “go-to instrument” for high-voltage source and low-current measurement applications in the lab and in the test rack.

Features and Benefits

• Wide coverage up to 1100 V / 1 A DC 20 W max.
• 10 fA measure resolution
• 0.012% basic measure accuracy with 6-digit resolution

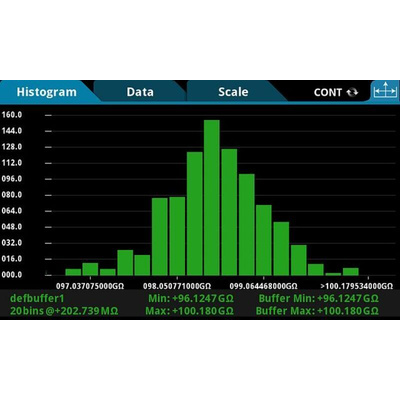

• Five-inch, high resolution capacitive touch screen GUI
• Source and sink (4-quadrant) operation
• SCPI and TSP® scripting programming modes
• TSP-Link for multi-channel I-V testing
• Front panel input banana jacks
rear panel high-voltage input triaxial connections
• Built-in context-sensitive help
• Front-panel USB 2.0 memory I/O port for transferring data, test scripts, and test configurations

Accessories

SMU Accessories

Software Options
Kickstart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

Cable and Interface Accessories
RS Stock No. 7600341 KPCI-488LPA (Low Profile IEEE-488 Interface Board)
RS Stock No. 7600345 KUSB-488B (IEEE-488.2 USB-TO-GPIB Interface Adapter)

Software Updates

KickStart www.tek.com/en/products/keithley/keithley-control-software-bench-instruments/kickstart

For full list of accessories, application and software options, please see datasheet

Keep your instrument up to date and to enhance the functionality, please visit Tektronix website for the latest software updates at https://www.tek.com/en/products/software

Applications

Automotive
Battery Testing
Embedded Design
Power Measurements and Analysis
Education
Manufacturing test/troubleshooting

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Datasheet 2470

UN38.3 Lithium Battery Test Summary
