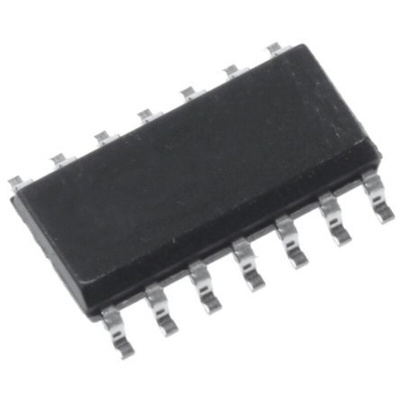

STMicroelectronics TD350ETR, MOSFET 1, 10 mA, 26V 14-Pin, SO

The TD350E device is an advanced gate driver for IGBTs and power MOSFETs. Control and protection functions are included and allow the design of high reliability systems.
The innovative active Miller clamp function eliminates the need for negative gate drive in most applications and allows the use of a simple bootstrap supply for the high side driver.
The device includes a two-level turn-off feature with adjustable level and delay. This function protects against excessive overvoltage at turn-off in case of overcurrent or short-circuit conditions. The same delay set in the two-level turn-off feature is applied at turn-on to prevent pulse width distortion.
The device also includes IGBT desaturation protection and a FAULT status output, and is compatible with both pulse transformer and optocoupler signals.

1.5 A source/2.3 A sink (typ.) gate drive
Active Miller clamp feature
Two-level turn-off with adjustable level and delay
Desaturation detection
Fault status output
Negative gate drive capability
Input compatible with pulse transformer or optocoupler
Separate sink and source outputs for easy gate driving
Applications
1200 V, 3-phase inverters
Motor control
UPS systems
