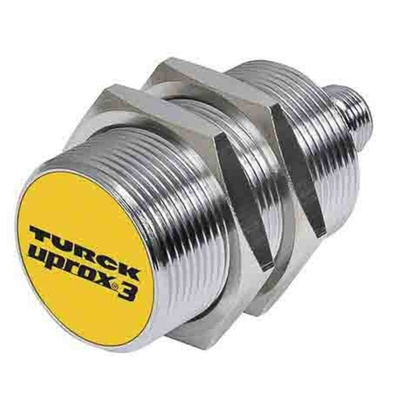

BI20U-MT30-IOL6X2-H1141, Turck Inductive Barrel-Style Proximity Sensor, M30 x 1.5, 20 mm Detection, PNP & NPN Output, 10 → 30 V dc, IP68, Индуктивный датчик приближения

Turck Proximity Sensor, Metal Housing Material, 20m Maximum Cable Length - BI20U-MT30 Series - BI20U-MT30-IOL6X2-H1141

Pick up on the presence or absence of objects in your industrial environment using this proximity sensor from Turck. As it uses inductive technology, it generates an electromagnetic field that reacts when an item made from a ferrous metal passes by it. Thanks to its maximum detection range of up to 20mm, it's just the right tool for close-range detection. It offers combined protection against short circuits and reverse polarity, so there's little chance of electrical irregularities impacting its operation.

Features & Benefits

• Flush mounting means it doesn't protrude, minimising the risk of impact
• Maximum IO-Link cable length of 20m for a long-range connection
• Integrated LED indicators for convenient status monitoring

Applications

• Assembly plants
• Conveyor systems
• Oil and gas industry
• Printing presses

How do I transfer data from this sensor to my control unit?

This sensor comes with an industry-standard IO-Link communication protocol that enables data transmission to your control system for processing and storage.

How durable is this sensor?

Thanks to its MTTF of 874 years, you can reliably use this sensor for a long time with minimal risk of breakdown.

Datasheet BI20U-MT30-IOL6X2-H1141

Instruction Sheet - BI20U-MT30-IOL6X2-H1141

Manual - BI20U-MT30-IOL6X2-H1141
