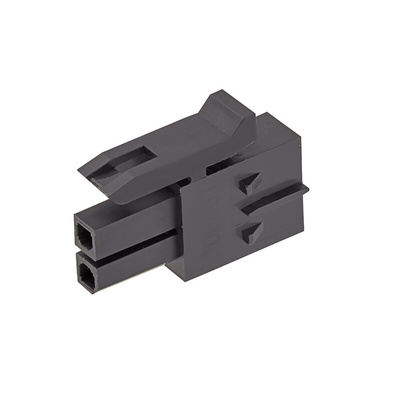

206461-0400, Molex Female PCB Connector Housing, 3mm Pitch, 4 Way, 2 Row, Корпус разъема

The Micro-Fit+ connector is a wire-to-board system which offers a 3.00mm pitch, a higher-current rating of 12.5A and superior design options for flexibility and efficient assembly.

Fully isolated contacts on each side of the interface
Prevents potential arcing
Reduced Mating Force by 40%
Allows for ease of work, reducing operator fatigue during assembly with its unique design compared to standard Micro-Fit 3.0
Fully polarized housings
Assures proper mating orientation, compatible with existing headers and plugs
Smaller PCB footprint
Provides design flexibility
Unique keying design
Prevents mis-mating, different than standard Micro-Fit 3.0
Enhanced TPA design
Provides stability and security for the terminals inside the receptacle, offers easy assembly for operators
V-0/Glow Wire combination resin
Reduces the cost of materials and labor
Applications
Consumer
Washers and dryers
Freezers
Gaming machines
Printers
Refrigerators
Scanners
Security systems
Vending machines
White goods
Telecommunications/Networking
Routers and switches
Servers
Storage
Medical
Diagnostic equipment
Patient monitors
Sustainable Energy
Solar power
Automotive
Harness manufacturers
Non-sealed applications
Inside devices
Charging stations

Datasheet 206461-0400
