ZBY9W2B230, Schneider Electric Illuminated Marked Legend Ring for Use with Emergency Stop Mushroom Head Push-Button, Not - Halt

Schneider Electric Harmony Illuminated Lens Ring with logo, NOT HALT, 24 V, ZBY9W2B230

Provide critical protection in your workplace and ensure maximum accessibility for your emergency stop system with the highly visible Harmony Lens Ring by Schneider Electric.

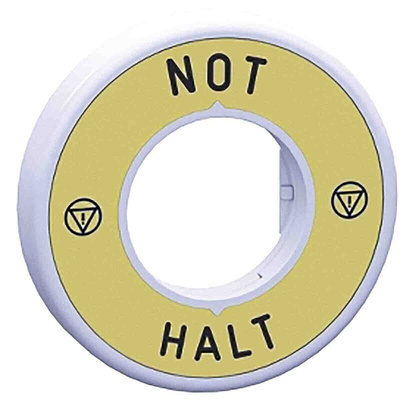

The Harmony Lens Ring ZBY9W2B230 is a 24 V illuminated yellow legend plate featuring black text, which reads ’NOT HALT’ in German. This ring is predominantly used in conjunction with an emergency switching off mushroom head push-button to trigger an emergency stop safety mechanism within machinery or devices. When pushed, the light of the Harmony Lens Ring will instantly change to red to indicate this.

To ensure that your emergency stop is always easily identifiable and accessible this legend plate is LED illuminated and features the colour change function, so that even dark or poorly lit conditions are not a problem. This ring is ideal for use in most industrial applications.

The Harmony range of push-buttons and push-button accessories by Schneider Electric have been designed to the highest standard to improve efficiency and safety in your workplace. Choose Harmony, and these practical, easy-to-install devices will provide you with optimal control of your emergency stop process.

Benefits and Features

The ZBY9W2B230 legend ring is fully compatible with Schneider Electric XB4 and XB5 series. The German text on this emergency stop legend plate makes it highly suitable for workplace environments with German speakers. Consistent LED illumination of the ring and immediate colour changing upon activation of the button safeguards visibility of your push-button at all times.

- Marking: Black NOT HALT text on a yellow background and caution logo
- Language: German
- Accessory: Emergency stop mushroom head push-button - 426-2808
- Light source: Protected LED
- Bulb base: Integral LED
- Light source colour: Red
- Current Consumption: 18 mA
- Dimensions (H x W): 60mm x 9.3mm
- Rated supply voltage: 24 V AC/DC at 50/60 Hz
- Material: Plastic

Protection Ratings

Rated insulation voltage: 600 V (pollution degree 3) conforming to EN/IEC 60947-1
IP degree of protection: An IP rating is usually a two-digit grading system that is applied to the enclosure of a mechanical or electrical item, giving customers a clear indication of the item’s resistance to various types of unwanted intrusion.
IP66 conforming to IEC 60529 - Full protection against dust and other particulates, protection against powerful jets (12.5 mm nozzle) of directed water from any direction.
IP67 conforming to IEC 60529 - Protection against full immersion for up to 30 minutes at depths between 15 cm and 1 metre (limited ingress permitted with no harmful effects).
IP69 conforming to IEC 60529 - Protection against high-pressure, high-temperature jet sprays, wash-downs or steam-cleaning procedures.
IP69K conforming to ISO 20653 – Protection against powerful high temperature water jets, Protected against close-range high pressure, high temperature spray downs.
Type 13 conforming to UL 50E – Protection against spraying, splashing.
Type 12 conforming to UL 50 E – Protects against light splashing and consequent seepage of oil and non-corrosive coolants.
Type 4/4X conforming to UL 50E - Prevents ingress of solid foreign objects, protects against harmful effects to equipment due to the ingress of water, external ice formation.
RoHs compliant and REACH standard compliant

What is a legend plate?

A legend plate is a component used in conjunction with push-buttons and switches to highlight the placement of the button. They can also provide clear visual indication when the mechanism is triggered. Some rings will have text or symbol engravings on them that display what happens when you press, pull, push or twist a component. This type of ring is usually used within industrial workplace settings, where tactile emergency stop processes for potentially dangerous or expensive machinery need to be obvious, quick, and easy-to-use.

What is a push-button?

A push-button is a switch mechanism that controls a function within a machine or device, such as an instant shut down.

Datasheet ZBY9W2B230
