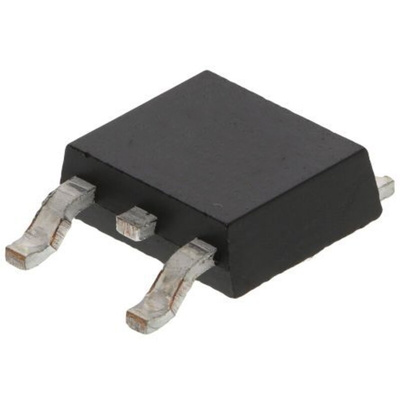

The L78M series of three-terminal positive regulators is available in TO-220, TO-220FP, DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Output current to 0.5 A
Output voltages of 5, 6, 8, 9, 10, 12, 15, 24 V
Thermal overload protection
Short circuit protection
Output transition SOA protection
Output voltage tolerance: 2 % (AB and AC versions) or 4 % (C version)
Datasheet L78M08CDT-TR| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
