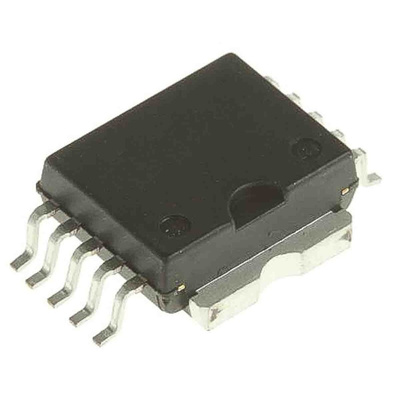

STMicroelectronics STCS2SPR SO Display Driver, 10 Pin, 2.7 → 5.5 V, Драйвер

The STCS2 is a BiCMOS constant current source designed to provide a precise constant current starting from a varying input voltage source. The main target is to replace discrete components solution for driving LEDs in low voltage applications such as 5 V, 12 V or 24 V giving benefits in terms of precision, integration and reliability.
The current is set with external resistor up to 2 A with a ± 10 % precision
a dedicated pin allows implementing PWM dimming.
An open-drain pin output provides information on load disconnection condition.

LED disconnection diagnostic
Up to 40 V input voltage
Up to 2 A output current
Less than 0.5 V voltage overhead
Shutdown pin
PWM dimming pin
Applications
LED constant current supplying for varying input voltages
Low voltage lighting
Small appliances LED lighting
Car LED lights

Datasheet STCS2SPR
