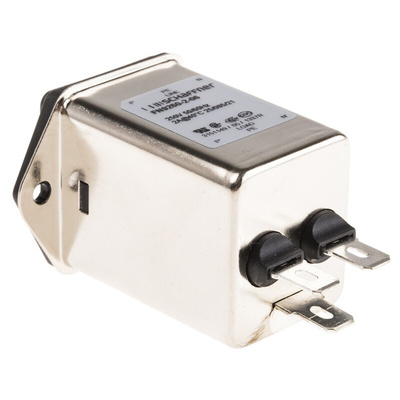

Schaffner,2A,250 V ac Male Panel Mount IEC Inlet Filter FN 9260-2/06,Faston 1 Fuse, Фильтр

Double Fused FN9260

The FN9260 power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. A wide selection on amperage ratings, output connections, mounting possibilities and filters for medical applications are designed to offer you the desired solution.

Can be used in a wide range of applications such as portable electrical & electronic equipment, medical equipment, household equipment, single-phase power supplies, switch-mode power supplies and test & measurement equipment.

Versions up to 10 A are available with fuse holder for one or two fuses
Optional safety version (A type)
Complies with IEC/EN 60601-1
Snap-in versions (S type)

Warning

Neutral line must not be fused where it is referenced to earth.

Approvals

UL recognised component, CSA certified, VDE

Schaffner Dual Fuse Inlet Filter

The Schaffner IEC inlet filter is a male type, dual fused, panel mount power entry module. It has a voltage rating of 250VAC with 2A high-performance current rating. The power entry module combines an IEC inlet, mains filter with excellent filter attenuation and fuses in a small form factor. It has a wide selection on amperage ratings, output connections and mounting possibilities. The operating frequency of this filter ranges between 0Hz and 400Hz.
Schaffner type fused/fused and switched
IEC inlet plugs with integral mains filter are designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 (1/4in) receptacles. Accepts 20mm x 5mm dia. fuses. Fuses are not included.
Warning:
Neutral line must not be fused where it is referenced to the earth.

Features and Benefits

Convenient, highly-integrated module
Fuse drawer with easy access
Fast-On terminals
Snap-in versions (S type)
Operating temperature ranges between -25°C and 85°C
•Connector type IEC/EN 60939

Applications

Electrical and electronic equipment
Medical equipment
Household equipment
Single-phase and switch-mode power supplies
Test and measurement equipment.

Certifications

UL approved
CSA certified
VDE
IP40 rated

Approvals

UL recognised component, CSA certified, VDE

Schaffner Type FN Fused/Fused and Switched

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate. Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically RS stock no. 526-0724).,Accept 20 x 5mm dia. fuses. Fuses not included.
