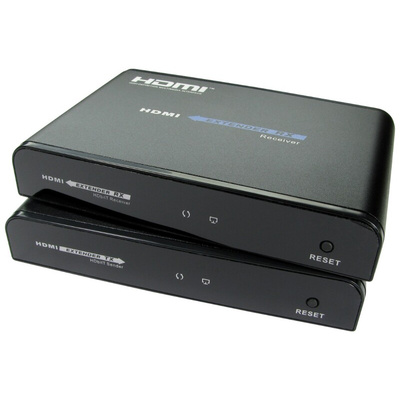

HD-EX345-120, NewLink HDMI over CATx Extender 120m, 1080 Maximum Resolution

The HDMI Extender allows you to transmit a HDMI signal over Ethernet using the HDBitT transmission protocol. You can transmit a HDMI signal all around your house or office using a single Cat5e/Cat6 cable. The Plug and Play design is very easy to use simply connect both units to the HDMI devices, connect the I/R adapters and plug them into the extenders. The extender can transmit 1080p(60Hz) up to 120 Metres(using Cat6 cable). Cat5 – 80mtr, Cat5e – 100mtr, CAT6 – 120mtr.

Supports up to 1080p @ 50/60Hz
Supports HDCP
Supports 20∼60KHz IR devices
Supports local loop output
Supports IR passback
Contents
1 x HDMI Sender

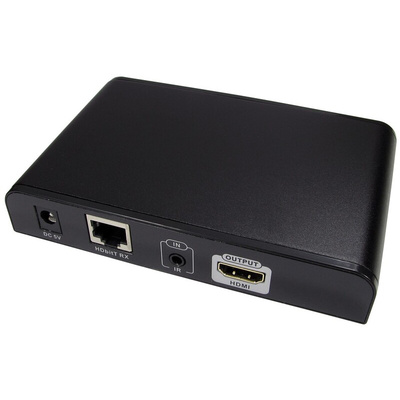

1 x HDMI Receiver
1 x IR Blaster
1 x IR Receiver
2 x PSU's
1 x User Manual

Datasheet - HDMI Extender HD-EX345-120
