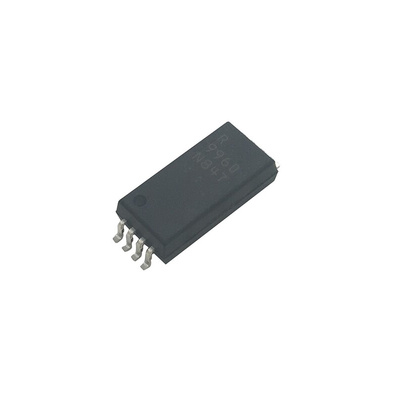

Renesas Electronics Renesas, RV1S9960ACCSP-10YC#SC0 CMOS Output Optocoupler, Surface Mount, 8-Pin LSDIP

High-speed CMOS output photocouplers (optocouplers) are optically coupled isolators containing a GaAlAs LED on the input side and a CMOS output IC on the output side. This coupler is a high common mode transient immunity (CMR), high-speed CMOS output type device designed for high-speed logic interface circuits.

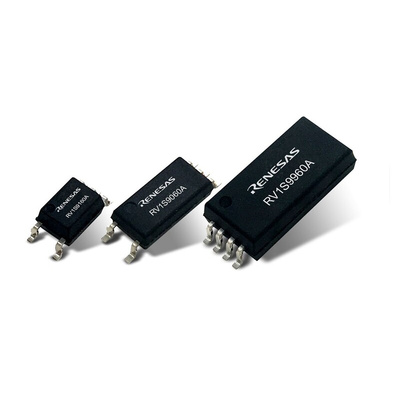

The RV1S9960A is a photocoupler featuring high-speed switching up to 15Mbps with active low output logic which consist of an AlGaAs LED on the input side and an integrated circuit with a photodiode on the output.
This product enables to low current operation on 3.3V/5V power supply with high noise-tolerant CMR:50kV/us min. and high temperature operation up to Ta=110°C in logic interface circuit.

Long creepage distance (14.5 mm MIN)
High speed communication (15 Mbps)
High temperature operation (-40 to +110°C)
High common mode (dv/dt) tolerant (CMH, CML = ±50 kV/μs MIN.)
High isolation voltage (BV = 7500 Vr.m.s.)
Low input drive current (IFHL = 3.8 mA MAX.)
Low voltage power supply operation (VDD = 2.7 V to 5.5 V)
Low pulse width distortion (PWD = 20 ns MAX.)
Pb free product
Applications
Industrial Inverter, Solar/Wind Power Conditioner
