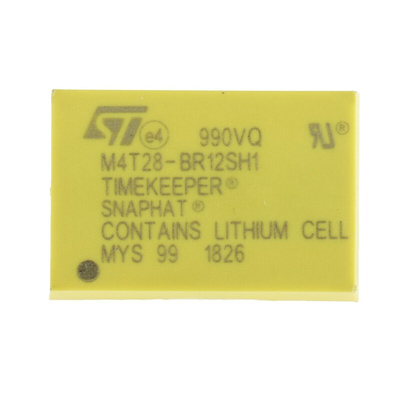

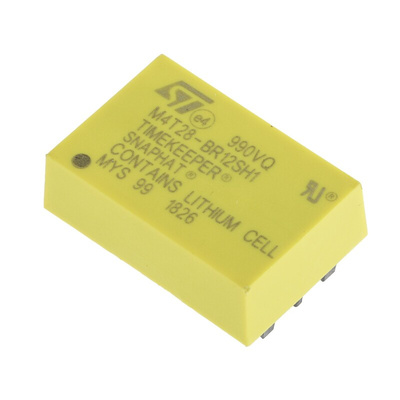

STMicroelectronics M4T28-BR12SH1, Battery Backup IC, 2.8 V 4-Pin, SNAPHAT

SNAPHAT® Lithium Coin Cell Battery with Crystal, STMicroelectronics

These Battery and Crystal Option devices are detachable lithium power sources housed in special top called SNAPHAT®. The SNAPHAT is snapped on the top of the surface-mounted IC in the Printed Circuit board. Also compatible with the non-volatile TIMEKEEPER® package by STMicroelectronics.

M4Txx-BR12SH SNAPHAT

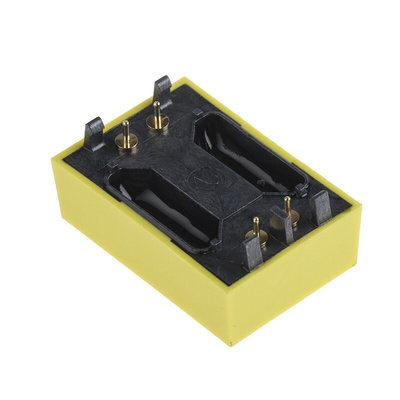

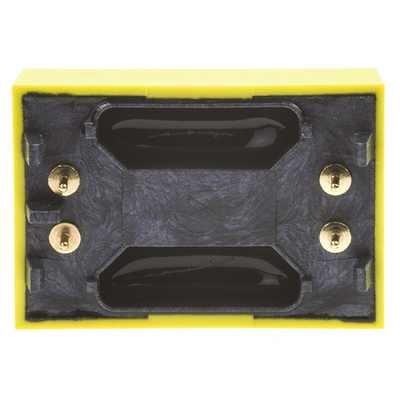

The M4Txx-BR12SH SNAPHAT®top is a detachable lithium power source for ST’s serial real-time clock and non-volatile TIMEKEEPER®surface-mount SOIC package (28- and 44-pin).

The SNAPHAT top contains both the battery and crystal and is designed to be “snapped on” after the SOIC is surface mounted on the PC board. Thus the two-piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface-mount process.

Features and Benefits

• Provides battery backup power for serial real-time clock, non-volatile TIMEKEEPER®and supervisor devices in the 28- or 44-pin SNAPHAT®SOIC package


• Removable battery avoids heat associated with surface-mount process


• Snaps directly onto surface-mounted SNAPHAT SOIC


• Choice of battery capacities:

• Keyed insertion to ensure proper assembly


• Removable for replacement and proper disposal


• Pb-free package


• Available in Ecopack®packages, tubes

M4T28-BR12SH, M4T32-BR12SH, Real-Time Clock and TIMEKEEPER SNAPHAT, Battery with Crystal

UN38.3 Test Summary BR1632
