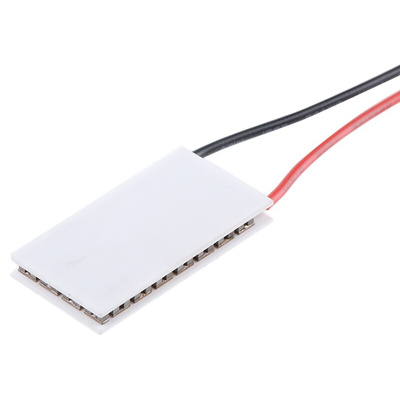

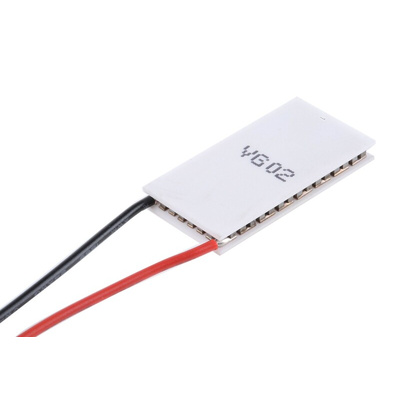

CP1.0-63-05L, Laird Technologies Peltier Module, 18.2W, 3.9A, 8.2V dc, 29.7 x 15mm, Модуль Пельтье

1891611
Номер производителя: CP1.0-63-05LПроизводитель: Laird Technologies
Цена за шт.
21309.00 руб. (С НДС) *
Количество 5+ 10+ 25+ 100+
Цена 20244.00 руб. 19605.00 руб. 18753.00 руб. 16620.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Thermoelectric Modules, Laird Technologies

From Global Component Sourcing, these heat pumps utilise the Peltier Effect to remove heat from the application. They are particularly suited for use within applications where space or access is limited. Peltier effect heat pumps are also highly cost effective when compared to conventional cooling solutions.

Thermoelectric Modules - Peltier Effect

A range of semiconductor thermoelectric devices working on the Peltier effect. When supplied with a suitable electric current, they can either cool or heat. When subject to an externally applied temperature gradient these devices will generate a small amount of electrical power.The larger devices can be used for cooling or controlling the temperature of sub-assemblies. The small size of the mini module makes it ideally suited for cooling miniature electronic components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.,Alternatively, it may be used to minimise the effects of temperature coefficients on oscillator stability, reference voltages, amplifier offsets etc. by providing temperature control.

Solid-state long term stability
Generates no acoustic noise

Техническая спецификация
pdfPeltier Effect Heat Pump Datasheet
Активная область:
29.7 x 15мм
Длина активной области:
29.7мм
Максимальная емкость охлаждения:
18.2Вт
Максимальная разность температур:
+75°C
Максимальное напряжение:
8.2В пост. тока
Максимальный ток:
3.9A
Толщина активной области:
3.2мм
Ширина активной области:
15мм
