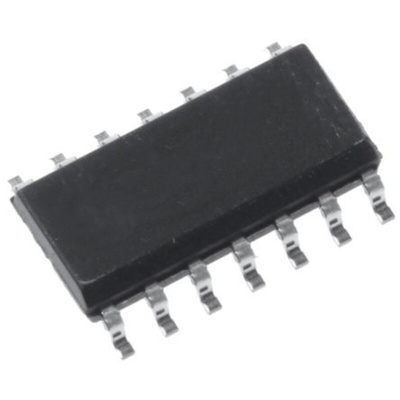

TS914AIDT STMicroelectronics, CMOS, Op Amp, RRIO, 1.4MHz 100 kHz, 2.7 → 16 V, 14-Pin SO, Операционный усилитель

The TS914 device is a rail-to-rail CMOS quad operational amplifier designed to operate with a single or dual supply voltage. The input voltage range Vicm includes the two supply rails VCC+and VCC-. The output reaches VCC- +50 mV, VCC+-50 mV, with RL= 10 kΩ, and VCC- +350 mV, VCC+-350 mV, with RL= 600 Ω. This product offers a broad supply voltage operating range from 2.7 to 16 V and a supply current of only 200 μA/amp (VCC= 3 V). The source and sink output current capability is typically 40 mA (at VCC= 3 V), fixed by an internal limitation circuit.

Rail-to-rail input and output voltage ranges
Single (or dual) supply operation from 2.7 to 16 V
Extremely low input bias current: 1 pA typical
Low input offset voltage: 5 mV max. (A grade)
Specified for 600 Ω and 100 Ω loads
Low supply current: 200 μA/ampli. (VCC= 3 V)
Latch-up immunity
Spice Macro model included in this specification
Related products
See TS56x series for better accuracy and smaller packages

Datasheet TS914AIDT
