STMicroelectronics Voltage Supervisor 6-Pin UDFN, STM6519APAAUB6F

Operating voltage range 2 V to 5.5 V
Low supply current 1 μA
Integrated test mode
Single Smart Reset™ push-button input with fixed extended reset setup delay (tSRC) from 0.5 s to 10 s in 0.5 s steps (typ.), option with internal input pull-up resistor
Push-button controlled reset pulse duration
Option 1: fully push-button controlled, no fixed or minimum pulse width guaranteed
Option 2: defined output reset pulse duration (tREC), factory-programmed
Single reset output
Active-low or active-high
Push-pull or open drain with optional pull-up resistor
Fixed Smart Reset input logic voltage levels
Operating temperature: -40 °C to 85 °C

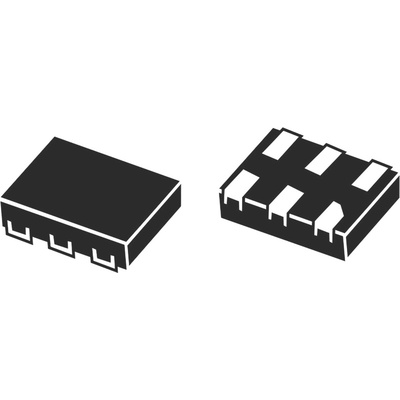

UDFN6 package 1.00 mm x 1.45 mm

Datasheet STM6519APAAUB6FST
