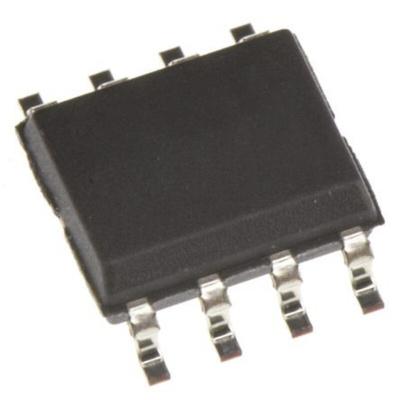

STMicroelectronics ST3485EIDT Line Transceiver, 8-Pin SOIC, Приемопередатчик

The ST3485EB/EC/EI/EIY device is ±15 kV ESD protected, 3.3 V low power transceiver for RS-485 and RS-422 communications. The device contains one driver and one receiver in half duplex configuration. The ST3485E device transmits and receives at a guaranteed data rate of at least 12 Mbps. All transmitter outputs and receiver inputs are protected to ±15 kV air discharge. The driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high impedance state.

ESD protection
±15 kV air discharge
±8 kV contact discharge
Operate from a single 3.3 V supply - no charge pump required
Interoperable with 5 V logic
1 μA low current shutdown mode max.
Guaranteed 12 Mbps data rate
-7 to 12 V common mode input voltage range
Half duplex versions available
Industry standard 75176 pinout
Current limiting and thermal shutdown for driver overload protection
Guaranteed high receiver output state for floating inputs with no signal present
Allow up to 64 transceivers on the bus
Available in SO8 package

Datasheet ST3485EIDT
