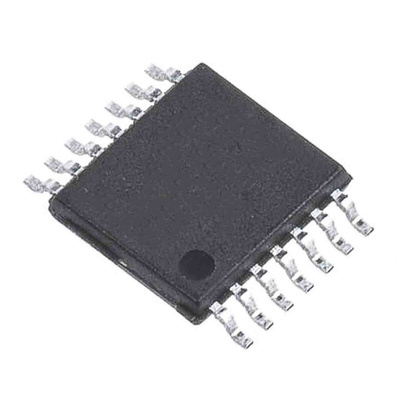

TS864IPT STMicroelectronics, Quad Comparator, Push-Pull O/P, 500ns 2.7 → 10 V 14-Pin TSSOP, Компаратор

The TS86x device (single, dual and quad) is a rail-to-rail comparator characterized for 2.7 to 10 V operation over -40 °C to +85 °C temperature ranges. It exhibits an excellent speed-to-power ratio, featuring a current consumption of 6 μA per comparator and a response time of 500 ns at 2.7 V for a 100 mV overdrive. Due to its ultra low power consumption and its availability in a tiny package, the TS86x comparator family is perfectly suited to battery-powered systems. The output stage is designed with a push-pull structure allowing a direct connection to the microcontroller without additional pull-up resistors.

Ultra low current consumption (6 μA/comp. at VCC = 2.7 V)
Rail-to-rail CMOS inputs
Push-pull outputs
Supply operation from 2.7 to 10 V
Low propagation delay
ESD protection (2 kV)
Latch-up immunity (class A)
Available in SOT23-5 micro package, SO-8, SO-14,TSSOP8, and TSSOP14 package

Datasheet TS864IPT
